Are you choosing the correct flow meter?

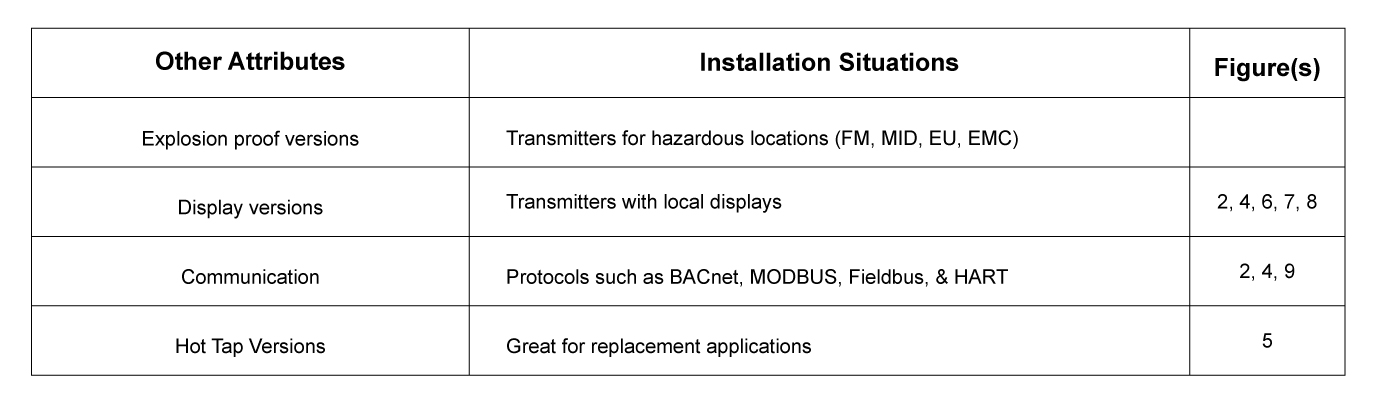

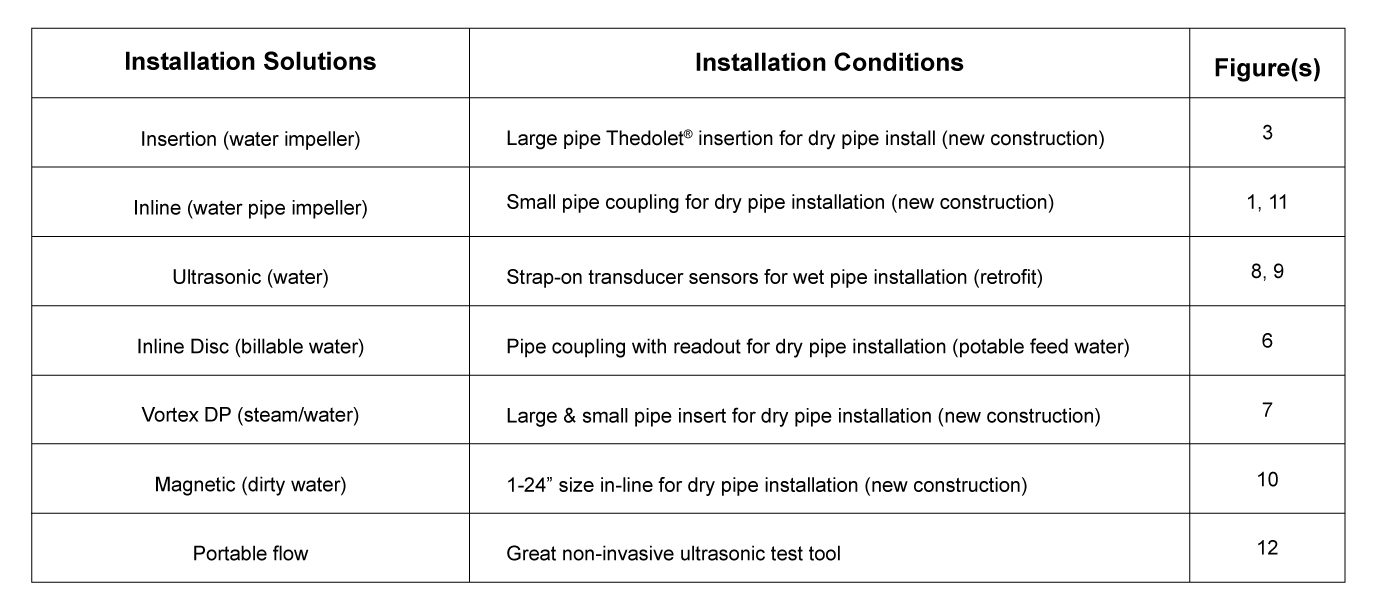

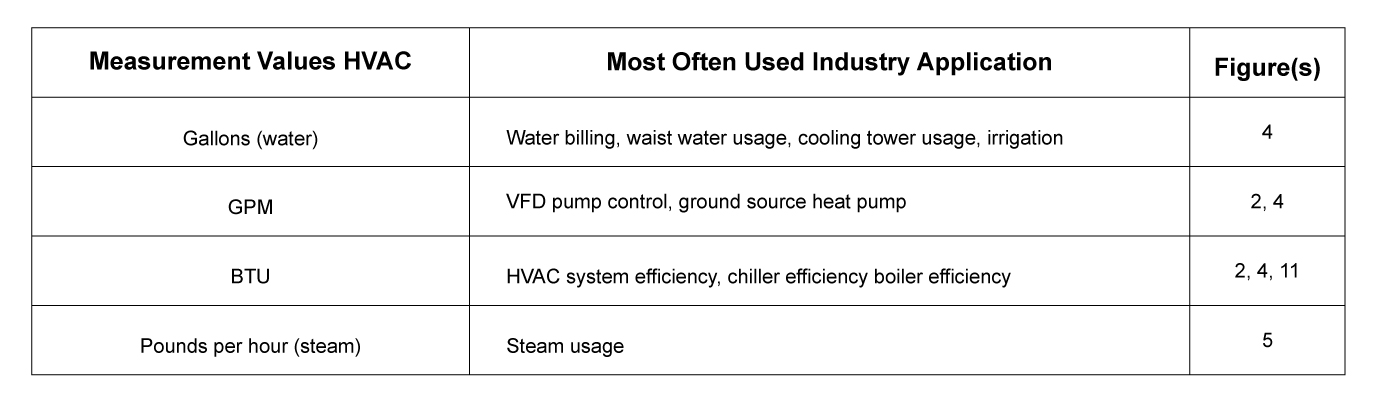

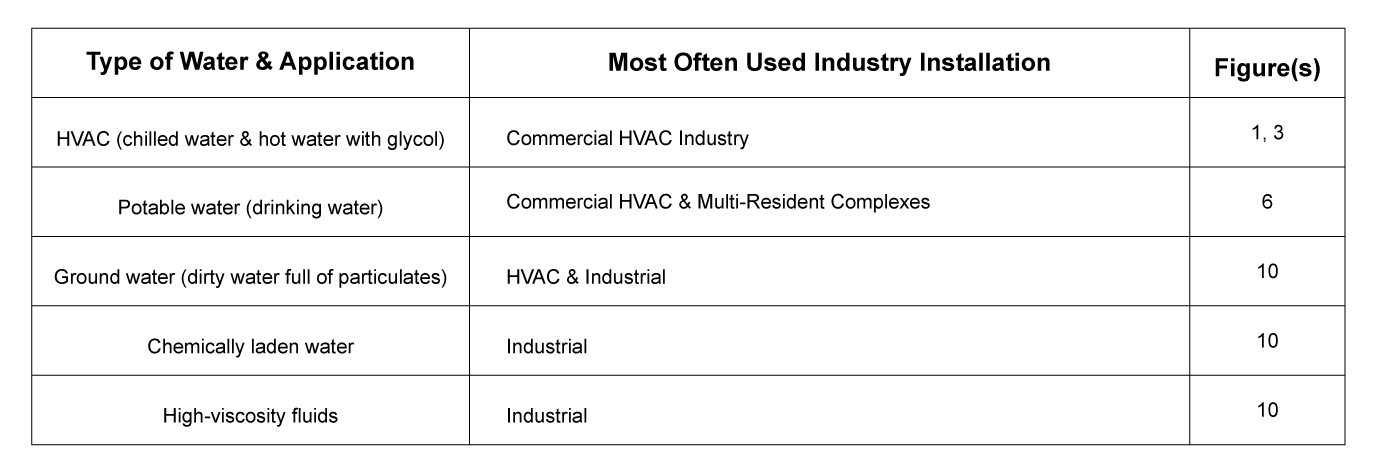

Most buildings require some aspect of water flow and, often, BTU measurement. Several different flow sensor techniques can be used depending on need. These include water type, application, accuracy, required measurement, installation challenges, and cost effectiveness. Below is a table to help you determine which technique, product, and installation is most relevant for your project.

Kele offers a variety of products (shown below) from suppliers Badger Meter and Data Industrial that meet all aspects of these flow requirements.

Data Industrial products are designed for flow control and reporting and meet the highest standards in the industry. While a higher accuracy requirement often brings a higher price, Badger Meter flow products offer a robust mix of high-accuracy meters ideally priced for the competitive HVAC application bid environment.

The next time you have a challenging water flow application, call Kele at 877.826.9045 or email us at technicalsales@kele.com for technical support to find the right solution at the optimal price!

Figure 1 - HW/CHW

Example shown: 250B Series



Figure 4 - Flow Computer

Example shown: FC5000 Series



Figure 7 - Vortex Meter

Example shown: VN2000 Series



Figure 10 - Magnetic Flow Sensor

Example shown: M-2000 Series



Figure 2 - BTU w/BACnet

Example shown: 3000 Series



Figure 5 - Hot Tap

Example shown: SDI Series



Figure 8 - Ultra-sonic Pipe mounted

Example shown: DE/DB Series



Figure 11 - BTU Meter, 3/4"-2" Pipe, w/BACnet

Example shown: 380 Series



Figure 3 - Irrigation, HW/CHW

Example shown:  220B Series (220SS available)





Figure 6 - Water Meter

Example shown:  RCDL Nutating Disc





Figure 9 - Ultra-sonic w/Transducers

Example shown:  TFX-500W Series





Figure 12 - Portable Flow Meter

Example shown: DXN Series
