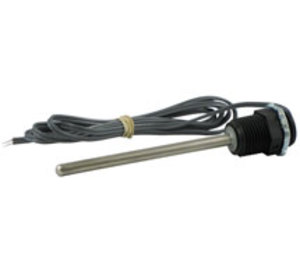

T112R12W | Greystone Energy Systems | Temperature Sensors & Transmitters

Sensor: Several Thermistors, Platinum or Nickel RTDs available. See product ordering information.

Sensor Accuracy:

Thermistors: ±0.2°C (±0.36°F), 0 to 70°C (32 to 158°F)

Platinum RTDs: ±0.3°C (±0.54°F) @ 0°C (32°F)

Nickel RTDs: ±0.4°C (±0.72°F) @ 0°C (32°F)

Operating Temperature:

AP, B, C, E, EX, G, & HC: -20 - 105°C (-4 - 221°F)

BB, D, DR, FD & FL: -20 - 60°C (-4 - 140°F)

DC: -40 - 100°C (-40 - 212°F)

F, FE & FX: -50 - 100°C (-58 - 212°F)

H: (Sensor 4 & 28) -100 - 600°C (-148 - 1112°F)

Probe Material:

AP, B, BB, C, DR, E, FL, H: 6.35 mm (0.25 in) O.D., 304 series stainless steel

D & DC: 7.94 mm (0.3125 in) O.D. soft copper

FD: FT-6 rated plenum cable

ES: 2 in x 2 in aluminum plate

G: 0.5 in x 0.5 in x 2 in aluminum wafer

Wire Material:

AP, B, C, DR, E, ES, G, HC: PVC insulated, parallel bonded, 22 AWG

(Sensor type 2, 100 ohm platinum uses FT-4)

BB, D, FD, FL: FT-6 rated plenum cable, 22 AWG

DC: PTFE insulated, 22 AWG

H: Fiberglass insulated cable, 24 AWG

Enclosure:

Standard - ABS - UL94-5VB - IP61 (NEMA 2)

Round (E) - ABS - UL94-5VB - IP65 (NEMA 4X)

Metal (M) - Galvanized Steel - IP50 (NEMA 1)

Weatherproof (W) - Cast Aluminum - IP64 (NEMA 3X)

Hinged Weatherproof (FX) - ABS - UL94-5VB - IP65 (NEMA 4X)

Wiring Connections:

Pigtail, 2 or 3 wire

Round (E) enclosure- screw terminal block (14 to 22 AWG)

Warranty: 5 years
