ST-U24-O | Kele | Temperature Sensors & Transmitters

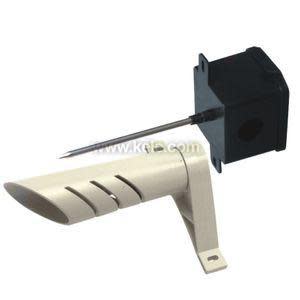

10K Type II Universal Thermistor, OSAB Outside Weathershield, Gasket, and Bracket for Wall Mount Included
Brand:Kele
MPN:ST-U24-O
SKU:ST-U24O
List Price:
$67.97
Today's Price:
$35.35
Log in for customized pricingproduct specifications
Type
Thermistor
Housing Material
Poly
Probe Length
4.875 in
Sensor Element
10K Type 2 Thermistor
Enclosure Rating
NEMA 3R,IP22
Accessory
T81U-XR,T85U-XR,T91U-XR,OSAB,F-1000-331
Application
Air Handling Unit,Outside Air Temperature
Output Signal
Resistance
product series specifications
Accuracy: ±0.36°F (0.2°C)
Thermistor: ±0.36°F (0.2°C)
RTD:
Type 63: ±0.72°F (0.40°C)
Type 71: +/-0.0774°F (0.043°C)
Type 81, 85: ±0.27°F (0.15°C)
Type 91: ±0.54°F (0.30°C)
Sensor Type:
Thermistor: 2.252 kΩ, 3 kΩ, 10 kΩ Type II, III & III w/11K shunt, 20 kΩ, 100 kΩ
RTD:
Type 63: 1000Ω Nickel
Type 71, 81: 100Ω Pt 385 Curve
Type 85: 1000Ω Pt 385 Curve
Type 91: 1000Ω Pt 375 Curve
Temperature Range: -40° to 221°F (-40° to 105°C)
Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient
Temperature Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: Max 0.04% after 1k hours @ 500 °F
Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating: NEMA 3R, UL 94V-0, plenum-rated plastic, IP22 UV protected with snap-off cover
Mounting: Directly to duct, immersion well, or OSA wall mount with appropriate bracket
Wiring Terminations: 8' (2.4m) of 24 AWG pigtails with pre-stripped ends, type 71 & 81 have 18" leads
Weight: Weight: 0.25 lb (0.1 Kg) w/o options
Approvals: CE
Warranty: Lifetime
product series features
- Lifetime warranty
- Flame retardant, plenum rated
- Wide selection of thermistor and RTD curves
- Adaptable with many mounting options
- 304 stainless steel probes
- Easy to mount to duct, well, or wall
- Waterproof probe
- Paintable plastic
- NEMA 3R, IP22
- Brass or stainless well
- Outside air kit
- Custom lengths
- Matched sensor pairs
- Ultra high accuracy optional
more information & related documents
Series Description
The Precon Model ST-U Universal Mount Sensor from PreCon provides precise remote temperature sensing in multiple applications such as duct, OSA, and immersion installations for Building Automation Systems, BAS. The active sensing element is a highly stable precision thermistor material or platinum RTD. The sensing element is sealed with a thermally conductive compound in a 4-7/8 in (12.38 cm) long stainless steel probe and is attached to a 2.5 in (6.35 cm) square enclosure. These sensors have tabs on the enclosure to provide mounting ears for direct duct mounting. They can be easily removed if they are not needed. This multipurpose enclosure minimizes the number of stock parts required to handle multiple applications.
Kele Description
TEMP SENSOR, DUCT, 10K TYPE II, 4-7/8IN, OSA SHIELD, NO OUTPUT
Manufacturer
Kele
