BA/592-D-18 | BAPI | Temperature Sensors & Transmitters

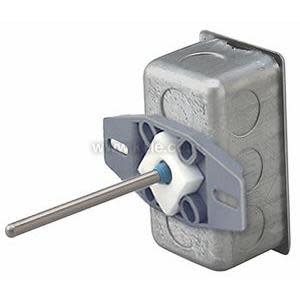

Duct Temperature Sensor, 592 Semiconductor, 18 Probe, Steel Junction Box

Brand:BAPI

MPN:BA/592-D-18

SKU:BA/592D18JB

List Price:

$41.82

Today's Price:

$21.75



product specifications

Accessory

T85U-XR, T81U-XR, T91U-XR, UR

Application

Duct Temperature, Air Handling Unit

Housing

Junction Box

Housing Material

Metallic

Housing Rating

NEMA 1

Output

Resistance

Probe Length

18 in

Sensor Element

10K Thermistor

Type

Semiconductor

product series specifications

    Accuracy:
    Thermistor:
  • ±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
  • ±0.55‚Ñâ (±0.30‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 10 k‚Ѷ Type II & III
    RTD:
  • 100‚Ѷ, 1000‚Ѷ, 385 curve; 1000‚Ѷ, 375 curve
    Temperature Range:
  • 32° to 158‚Ñâ (-0° to 70‚ÑÉ)
    Stability:
  • < 0.036‚Ñâ (0.02‚ÑÉ) per year, 0.14‚ÑÉ with 6,000 continuous hours at 400‚ÑÉ
    Heat Dissipation:
  • 2.7 mW/‚ÑÉ (power need to raise the temperature 1‚ÑÉ), 0.4‚ÑÉ/mW at 0‚ÑÉ
    Enclosure/Weight:
    NB:
  • No Box; 0.5 lb (0.23 Kg)
    JB:
  • 2‚Ä= x 4‚Ä= J-box with 1/2‚Ä= knockouts: 0.65 lb (0.29 Kg)
    BB:
  • BAPI-Box - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)
    BB2:
  • BAPI-Box 2 - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)
    WP:
  • NEMA 3R cast aluminum; 0.8 lb (0.36 Kg)
    Mounting:
  • Directly to duct
    Wiring Terminations:
  • 22 AWG wire, etched teflon leads
    Approvals:
  • CE, RoHS
    Warranty:
  • Lifetime

product series features

  • Several enclosure styles with mounting tabs for easy installation
  • Probe lenghts: 4 in, 8 in, 12 in and 18 in
  • Lifetime limited sensor warranty

more information & related documents

Series Description

The BAPI BA Series Duct Thermistor and RTD Sensors are available in a variety of easy-to-mount installation types. They come in thermistor and RTD sensors and feature etched Teflon leadwires and encapsulated sensors to create a watertight package that can perform in the real world.

Kele Description

DUCT 592 SEMI 18IN PROBE HANDI BOX

Manufacturer

BAPI
