BA/592-10K-D-12"-BB | BAPI | Temperature Sensors & Transmitters

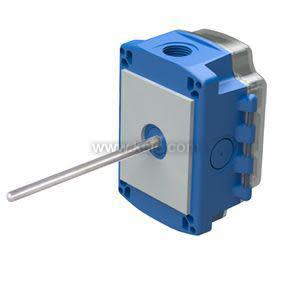

Duct Temperature Sensor, 592 Semiconductor 10K, 12" Probe, BAPI-Box Enclosure- IP66 Rated, UV-Resistant Polycarbonate, Terminal Strip Connection

Brand:BAPI

MPN:BA/592-10K-D-12"-BB

SKU:BA/59210KD12BB

List Price:

$94.34

Today's Price:

$49.06

Lead time of 10 days. Chat with Kele experts now

product specifications

Type

Semiconductor

Housing Material

Poly

Probe Length

12 in

Sensor Element

10K Thermistor

Enclosure Rating

NEMA 4,IP66

Accessory

T85U-XR,T81U-XR,T91U-XR,UR

Application

Duct Temperature,Air Handling Unit

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD: ±0.55°F (±0.30°C)

Sensor Type:

Thermistor: 10 kΩ Type II & III

RTD: 100Ω, 1000Ω, 385 curve; 1000Ω, 375 curve

Temperature Range: 32° to 158°F (0° to 70°C)

Stability: < 0.036°F (0.02°C) per year, 0.14°C with 6,000 continuous hours at 400°C

Heat Dissipation: 2.7 mW/°C (power need to raise the temperature 1°C), 0.4°C/mW at 0°C

Enclosure/Weight:

NB: No Box; 0.5 lb (0.23 Kg)

JB: 2" x 4" J-box with 1/2" knockouts: 0.65 lb (0.29 Kg)

BB: BAPI-Box - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)

BB2: BAPI-Box 2 - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)

WP: NEMA 3R cast aluminum; 0.8 lb (0.36 Kg)

Mounting: Directly to duct

Wiring Terminations: 22 AWG wire, etched teflon leads

Approvals: CE, RoHS

Warranty: Lifetime

product series features

  • Several enclosure styles with mounting tabs for easy installation
  • Probe lenghts: 4 in, 8 in, 12 in and 18 in
  • Lifetime limited sensor warranty

more information & related documents

Series Description

The BAPI BA Series Duct Thermistor and RTD Sensors are available in a variety of easy-to-mount installation types. They come in thermistor and RTD sensors and feature etched Teflon leadwires and encapsulated sensors to create a watertight package that can perform in the real world.

Kele Description

DUCT 592-10K SEMI 12IN PROBE BAPI BOX

Manufacturer

BAPI
