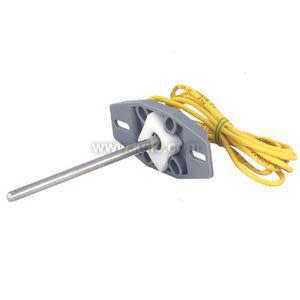

BA/20K-D-4"-NB-15' | BAPI | Temperature Sensors & Transmitters

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD: ±0.55°F (±0.30°C)

Sensor Type:

Thermistor: 10 kΩ Type II & III

RTD: 100Ω, 1000Ω, 385 curve; 1000Ω, 375 curve

Temperature Range: 32° to 158°F (0° to 70°C)

Stability: < 0.036°F (0.02°C) per year, 0.14°C with 6,000 continuous hours at 400°C

Heat Dissipation: 2.7 mW/°C (power need to raise the temperature 1°C), 0.4°C/mW at 0°C

Enclosure/Weight:

NB: No Box; 0.5 lb (0.23 Kg)

JB: 2" x 4" J-box with 1/2" knockouts: 0.65 lb (0.29 Kg)

BB: BAPI-Box - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)

BB2: BAPI-Box 2 - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)

WP: NEMA 3R cast aluminum; 0.8 lb (0.36 Kg)

Mounting: Directly to duct

Wiring Terminations: 22 AWG wire, etched teflon leads

Approvals: CE, RoHS

Warranty: Lifetime
