BA/20K-D-12-BB2-TS | BAPI | Temperature Sensors & Transmitters

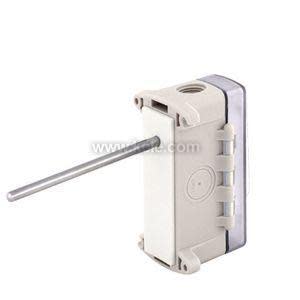

Duct Temperature Sensor, 20K Thermistor, 12 Probe, BAPI-BOX Enclosure 2- IP66 Rated, UV-Resistant Polycarbonate, Terminal Strip Connection

Brand:BAPI

MPN:BA/20K-D-12-BB2-TS

SKU:BA/20KD12BB2TS

List Price:

$48.10

Today's Price:

$25.01



product specifications

Accessory

T85U-XR, T81U-XR, T91U-XR, UR

Feature

Terminal Connection

Application

Duct Temperature, Air Handling Unit

Housing Material

Poly

Housing Rating

NEMA 4, IP66

Output

Resistance

Probe Length

12 in

Sensor Element

20K Thermistor

Type

Thermistor

product series specifications

    Accuracy:
    Thermistor:
  • ±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
  • ±0.55‚Ñâ (±0.30‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 10 k‚Ѷ Type II & III
    RTD:
  • 100‚Ѷ, 1000‚Ѷ, 385 curve; 1000‚Ѷ, 375 curve
    Temperature Range:
  • 32° to 158‚Ñâ (-0° to 70‚ÑÉ)
    Stability:
  • < 0.036‚Ñâ (0.02‚ÑÉ) per year, 0.14‚ÑÉ with 6,000 continuous hours at 400‚ÑÉ
    Heat Dissipation:
  • 2.7 mW/‚ÑÉ (power need to raise the temperature 1‚ÑÉ), 0.4‚ÑÉ/mW at 0‚ÑÉ
    Enclosure/Weight:
    NB:
  • No Box; 0.5 lb (0.23 Kg)
    JB:
  • 2‚Ä= x 4‚Ä= J-box with 1/2‚Ä= knockouts: 0.65 lb (0.29 Kg)
    BB:
  • BAPI-Box - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)
    BB2:
  • BAPI-Box 2 - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)
    WP:
  • NEMA 3R cast aluminum; 0.8 lb (0.36 Kg)
    Mounting:
  • Directly to duct
    Wiring Terminations:
  • 22 AWG wire, etched teflon leads
    Approvals:
  • CE, RoHS
    Warranty:
  • Lifetime

product series features

  • Several enclosure styles with mounting tabs for easy installation
  • Probe lenghts: 4 in, 8 in, 12 in and 18 in
  • Lifetime limited sensor warranty

more information & related documents

Series Description

The BAPI BA Series Duct Thermistor and RTD Sensors are available in a variety of easy-to-mount installation types. They come in thermistor and RTD sensors and feature etched Teflon leadwires and encapsulated sensors to create a watertight package that can perform in the real world.

Kele Description

TEMP SENSOR, DUCT, 20K, 12.00" PROBE, POLY ENCL
