3LSE-04L39/70-24-0081SVH | Bray | Control Valves

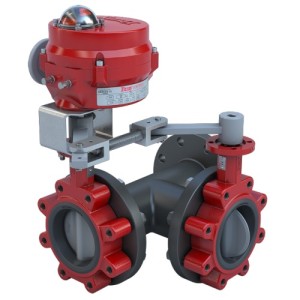

4 inch 3-Way Lugged Butterfly Valve Resilient Seated, ANSI Class 125/150, Ductile Iron Body, 316 Stainless Steel Disc, Seat EPDM, CV 310, Bubble tight leakage, Close-Off Pressure Rating 50 PSI, S70 Direct mounts to Bray Butterfly Valves, quarter turn electric actuator, 24 VAC/DC, modulating, 800 lb-in, NEMA 4, Heater, Input Signal 4-20mA, 0-10VDC, 0-5 VDC, 2-10VDC

Brand:Bray

MPN:3LSE-04L39/70-24-0081SVH

SKU:3LSE-04L39/70-24-0081SVH

List Price:

$6,754.00

Today's Price:

$3,512.08



(login for better pricing)
Lead time of 7 days. Chat with Kele experts now

product specifications

Connection

ANSI 125/150 Lugged

Cv

740 CV

Housing

IP65, IP67, NEMA 4, NEMA 4X

Type

Assembly

Valve Type

Resilient Seated

Options

Heater, Manual Override Handwheel

Pattern

3-way

Size

4 in

Control Signal

Analog

Fail Position

Last

With Auxiliary Switch

Yes

Close Off Pressure

50 psi

Actuator Type

Non-Fail Safe

Medium

Water/Glycol

Actuator Power Type

Electric

Supply Voltage (Nominal)

24 VAC

product series features

  • Series 70 Actuators - Features
  • Compact Design and Direct Mounting
  • High Visibility Beacon Position Indicator
  • Manual Declutchable Override Handwheel
  • Servo NXT Option for Modulating Control
  • Available with Battery Backup on 24 VAC/DC Models
  • 3L Series Resilient Seated Butterfly Valves - Features
  • High purity Peroxide Cured EPDM seats
  • Nylon coated ductile iron disc - 3LNE Series
  • Dead-End Service Rated
  • Wide variety of direct mount actuators
  • Full and 50 PSI close-off pressure ratings available

more information & related documents

Series Description

Bray’s 3L Series Nylon 11 coated and Stainless Steel disc resilient seated butterfly valves are designed for maximum reliability and low torque for the most efficient automation possible. Specifically designed for automated applications on chilled water, hot water and condenser water, all automated butterfly valves are 100% factory tested for bubble tight shut-off and industry leading low torque operation.   Bray’s years of proven success in quarter turn electric actuation, combined with innovative engineering, has produced the modern Series 70. The Series 70 has become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 800 to 18,000 lb.-in. (90 to 2033 NM), 24 VAC/DC and 120 VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

Kele Description

4IN,3W,ANSI 125/150,DI BDY,SS DISC,CV 310, 24VAC/DC,MOD,800LB-IN,NEMA 4,HTR

Manufacturer

Bray
