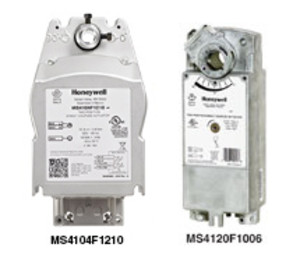

* product family image displayed

MS4103F1021/U | Honeywell | Actuators & Dampers

FIRE/SMK ACT, 27IN-LB, 120-230V, SCSA, CONDUIT, SR

Manufacturer:Honeywell

MPN:MS4103F1021/U

SKU:MS4103F1021/U

list price:

391.61

today's price:

207.55



(login for better pricing)
USD
availability: Usually Ships in Less Than 8 Business Days
Available Inventory
These numbers are estimates and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Motor

DC with brushes

Wiring

MS4xxx 32" leads, 18 AWG and 7/8" knockout holes for conduit fittings

MS8xxx 39" leads, 18 AWG and 7/8" knockout holes for conduit fittings

Action

CW/CCW mounting method

Rotation

95° ±3°, mechanically limited

Auxilliary Switch

-F120X 2 SPST, 5A res., 3A ind. @ 250VAC

-F10XX None

Noise

Driving Open 80 dBA @ 3' (1.0 m)

Holding 20 dBA @ 3' (1.0 m) no audible noise

Life Expectancy

30,000 cycles

Operating Temperature

0° to 130℉ (-18° to 55℃)

Operating Humidity

5 to 95% RH, non-condensing

Approvals

CE, C-TICK, cULus,UL873, NEMA1

Warranty

5 years

product family features

  • Designed to meet UL-555 and UL-555S requirements
  • Robust die-cast aluminum housing for protection and long service life
  • Maximum spring return timing of 15-20 seconds
  • Reliably built by the industry leader
  • Energy-saving patented design
  • No audible noise during holding

more information & related documents

Family Description

Honeywell fire and smoke damper actuators are designed to meet both UL-555 and UL-555S 350°F safety requirements for combined fire and smoke applications. The fast-acting actuators close dampers in 15-20 seconds, and the integral spring return ensures the consistent, proper level of torque.

Kele Description

FIRE/SMK ACT, 27IN-LB, 120-230V, SCSA, CONDUIT, SR

Manufacturer

Honeywell
