ASK71.3 | Siemens Industry | Actuators & Dampers

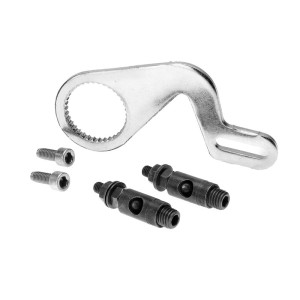

This Crank Arm Kit allows a direct-coupled actuator to provide an auxiliary linear drive. This kit can be used to simultaneously drive a set of opposing or adjacent dampers with a single Actuator This kit can be used with OpenAir GCA, GBB and GIB damper actuators.

Brand:Siemens Industry



List Price:


Today's Price:


Availability: Usually Ships in Less Than 5 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications


Crank Arm

product series specifications

    Input Impedance:
  • GXA161.1P, GNP191.1P 100k‚Ѷ @ 0/2-10VDC
  • GXA151.1P 100k‚Ѷ @ 0/2-10VDC, 500‚Ѷ @ 4-20ma
  • Brushless DC
    Life Expectancy:
  • 60,000 cycles, 100,000 full stroke cycles, 7,000,000 repositions (GNP)
  • 95°
    Manual Override:
  • Manual crank (except GQD), Disengage button (GNP)
    Operating Temperature:
  • -25° to 130°F (-32° to 55°C),
  • 0° to 122°F (-18° to 50°C) (GNP)
    Operating Humidity:
  • 5 to 95% RH non-condensing
  • Brushless DC
  • 3 ft (1.0 m), 18 AWG standard cable (.1U models), 3 ft (1.0 m), 18 AWG plenum cable (.1P models) See notes in Ordering Information for plenum option
    Conduit Connections:
  • 1/2‚Ä= NSPT (GCA, GMA only)
  • 100 Steps
  • <40 db @ 3' (1m)
    Input Impedance:
  • 100k‚Ѷ @ 0/2-10VDC
  • 500‚Ѷ @ 4-20ma
  • UL File #E35198, CE, plenum rated
  • 2 years

product series features

  • Self-centering shaft coupling
  • Brushless DC motor technology
  • Rugged, lightweight housings

more information & related documents

Series Description

The Siemens GMA and GCA Series direct-coupled spring-return actuators can control a complete range of HVAC spring-return damper applications. Each spring-return damper actuator is available in either 62 in-lb (7 Nm) torque, handling approximately 16 sq ft of damper area, or 160 in-lb (18 Nm) torque, handling approximately 40 sq ft of damper area. These damper actuators are available in all standard control signal types and offer a wide variety of options and accessories for building automation systems, BAS, applications.

Kele Description



Siemens Industry
