FGVL+EVB24-MFT | Belimo | Actuators & Dampers

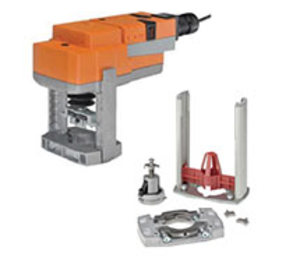

RETROFIT ACTUATOR/LINKAGE KIT, PROP, ELEC FAILSAFE
Brand:Belimo
MPN:FGVL+EVB24-MFT
SKU:FGVL+EVB24-MFT
product specifications
Type
Linkage/Linkage Kit
Weight
1.2
product series specifications
Connections: 3' (0.9 m) 18GA plenum rated cable
Life Expectancy: 100,000+ cycles
Materials of Construction: Plastic, aluminum, steel
Color: Orange actuator
Fail Safe: 35 seconds (not on all models), 35 sec
Supply Voltage: 24 VAC/VDC, 120 VAC, 230 VAC
Control Signal: On-Off, floating or proportional (MFT functionality optional)
Noise (Actuator Type):
SV Series: 55 dB
LV Series: 45 dB
EV/RV Series: 65 dB
Conduit Connection: 1/2" conduit fitting appliance cable
Feedback: Dependent on model
Auxiliary Switch: Add-on, @SPDT, 3A @ 250V,
Force (Actuator Type):
LV Series: 112 foot lbs (lbf)
SV Series: 337 foot lbs (lbf)
AVK Series: 450 foot lbs (lbf)
EVB Series: 562 foot lbs (lbf)
RVB Series: 1011 foot lbs (lbf)
Compatible Actuators: Actuator included in part number
Actuator Mounting: Included in part number
Drive Time: 90 sec (variable on MFT)
Operating Temperature: -22° to 122°F (-30° to 50°C)
Operating Humidity: 5-95% non-condensing
Enclosure Rating: NEMA 2 / IP54, UL enclosure type 2
Approvals: cULus, UL 60730-1A/-2, -14, CAN/CSA E60730-1:02, CE 2004/108/EC, 2006/95/EC
Warranty: 5 years
product series features
- Increased force ranges for higher close-off pressures
- Field selectable fail-safe actuator positions
- Lower power consumption during operation
- Cast Aluminum linkage
- Locking coupler feature to prevent slipping
- Centering device on linkage to assure proper alignment
- Manual override capability
more information & related documents
Series Description
The Belimo UGVL, SGVL, WGVL, AND FGVL Series New Generation Linear Globe Valve Actuators and Retrofit Linkages offer greater power and flexibility. Engineered to suit a broad range of HVAC applications, both the New Generation Actuators and Retrofit Linkages are highly adaptable making selection, installation, and long-term service worry-free. New force ranges is from 112 lbf 500N to 1011 lbf 4500N and there is a broader travel range from 0.6 in. (15 mm) to 2 in. (50 mm). With a universal format, these retrofit linkages and actuators will fit most globe valves on the market today.
Kele Description
RETROFIT ACTUATOR/LINKAGE KIT, PROP, ELEC FAILSAFE
Manufacturer
Belimo
Belimo - Universal Acutuators Available New Generation
