FGVL+AVKX24-MFT | Belimo | Actuators & Dampers

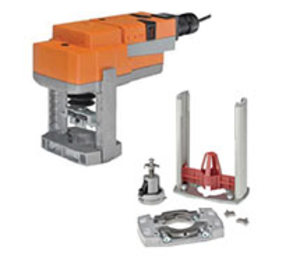

FGVL W/ELECTRONIC FAIL-SAFE, 450 LBF, MFT, 24V

Brand:Belimo

MPN:FGVL+AVKX24-MFT

SKU:FGVL+AVKX24-MFT

List Price:

$2,775.00

Today's Price:

$1,443.00



Lead time of 12 days. Chat with Kele experts now

product specifications

Torque

450 lbf

Supply Va

9.5 VA

Control Signal

Analog

Supply Voltage (Nominal)

24 VAC

product series specifications

Connections: 3' (0.9 m) 18GA plenum rated cable

Life Expectancy: 100,000+ cycles

Materials of Construction: Plastic, aluminum, steel

Color: Orange actuator

Fail Safe: 35 seconds (not on all models), 35 sec

Supply Voltage: 24 VAC/VDC, 120 VAC, 230 VAC

Control Signal: On-Off, floating or proportional (MFT functionality optional)

Noise (Actuator Type):

SV Series: 55 dB

LV Series: 45 dB

EV/RV Series: 65 dB

Conduit Connection: 1/2" conduit fitting appliance cable

Feedback: Dependent on model

Auxiliary Switch: Add-on, @SPDT, 3A @ 250V,

Force (Actuator Type):

LV Series: 112 foot lbs (lbf)

SV Series: 337 foot lbs (lbf)

AVK Series: 450 foot lbs (lbf)

EVB Series: 562 foot lbs (lbf)

RVB Series: 1011 foot lbs (lbf)

Compatible Actuators: Actuator included in part number

Actuator Mounting: Included in part number

Drive Time: 90 sec (variable on MFT)

Operating Temperature: -22° to 122°F (-30° to 50°C)

Operating Humidity: 5-95% non-condensing

Enclosure Rating: NEMA 2 / IP54, UL enclosure type 2

Approvals: cULus, UL 60730-1A/-2, -14, CAN/CSA E60730-1:02, CE 2004/108/EC, 2006/95/EC

Warranty: 5 years

product series features

  • Increased force ranges for higher close-off pressures
  • Field selectable fail-safe actuator positions
  • Lower power consumption during operation
  • Cast Aluminum linkage
  • Locking coupler feature to prevent slipping
  • Centering device on linkage to assure proper alignment
  • Manual override capability

more information & related documents

Series Description

The Belimo UGVL, SGVL, WGVL, AND FGVL Series New Generation Linear Globe Valve Actuators and Retrofit Linkages offer greater power and flexibility. Engineered to suit a broad range of HVAC applications, both the New Generation Actuators and Retrofit Linkages are highly adaptable making selection, installation, and long-term service worry-free. New force ranges is from 112 lbf 500N to 1011 lbf 4500N and there is a broader travel range from 0.6 in. (15 mm) to 2 in. (50 mm). With a universal format, these retrofit linkages and actuators will fit most globe valves on the market today.

Kele Description

FGVL W/ELECTRONIC FAIL-SAFE, 450 LBF, MFT, 24V

Manufacturer

Belimo
