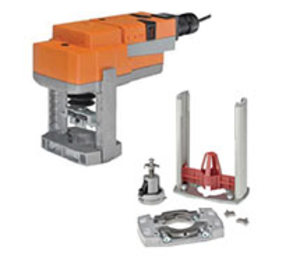

* product series image displayed

FGVL+AVKB24-3 | Belimo | Actuators & Dampers

FGVL W/ ELECT. FAIL-SAFE, 450 LBF, 24V, ON/OFF/FLO

Brand:Belimo

MPN:FGVL+AVKB24-3

SKU:FGVL+AVKB24-3

List Price:

$2,761.00

Today's Price:

$1,435.72



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Supply Voltage

24 VAC

Torque

450 lbf

Supply Va

9.5 VA

Control Signal

On/Off, Floating

product series specifications

    Connections:
  • 3' (0.9 m) 18GA plenum rated cable
    Life Expectancy:
  • 100,000+ cycles
    Materials of Construction:
  • Plastic, aluminum, steel
    Color:
  • Orange actuator
    Fail Safe:
  • 35 seconds (not on all models), 35 sec
    Supply Voltage:
  • 24 VAC/VDC, 120 VAC, 230 VAC
    Control Signal:
  • On-Off, floating or proportional (MFT functionality optional)
    Noise (Actuator Type):
    :
  • SV Series 55 dB
    :
  • LV Series 45 dB
    :
  • EV/RV Series 65 dB
    Conduit Connection:
  • 1/2‚Ä= conduit fitting appliance cable
    Feedback:
  • Dependent on model
    Auxiliary Switch :
  • Add-on, @SPDT, 3A @ 250V,
    Force (Actuator Type):
    :
  • LV Series 112 foot lbs (lbf)
    :
  • SV Series 337 foot lbs (lbf)
    :
  • AVK Series 450 foot lbs (lbf)
    :
  • EVB Series 562 foot lbs (lbf)
    :
  • RVB Series 1011 foot lbs (lbf)
    Compatible Actuators:
  • Actuator included in part number
    Actuator Mounting:
  • Included in part number
    Drive Time:
  • 90 sec (variable on MFT)
    Operating Temperature:
  • -22° to 122‚Ñâ (-30° to 50‚ÑÉ)
    Operating Humidity:
  • 5-95% non-condensating
    Enclosure Rating:
  • NEMA 2 / IP54, UL enclosure type 2
    Approvals:
  • cULus, UL 60730-1A/-2, -14, CAN/CSA E60730-1:02, CE 2004/108/EC, 2006/95/EC
    Warranty:
  • 5 years

product series features

  • Increased force ranges for higher close-off pressures
  • Field selectable fail-safe actuator positions
  • Lower power consumption during operation
  • Cast Aluminum linkage
  • Locking coupler feature to prevent slipping
  • Centering device on linkage to assure proper alignment
  • Manual override capability

more information & related documents

Series Description

The Belimo UGVL, SGVL, WGVL, AND FGVL Series New Generation Linear Globe Valve Actuators and Retrofit Linkages offer greater power and flexibility. Engineered to suit a broad range of HVAC applications, both the New Generation Actuators and Retrofit Linkages are highly adaptable making selection, installation, and long-term service worry-free. New force ranges is from 112 lbf 500N to 1011 lbf 4500N and there is a broader travel range from 0.6 in. (15 mm) to 2 in. (50 mm). With a universal format, these retrofit linkages and actuators will fit most globe valves on the market today.

Kele Description

FGVL W/ ELECT. FAIL-SAFE, 450 LBF, 24V, ON/OFF/FLO

Manufacturer

Belimo
