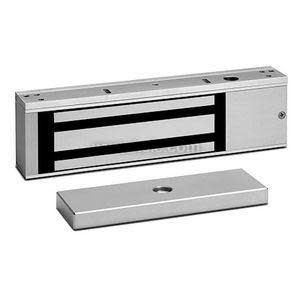

E1200 Magnetic Lock DS LS LED
Brand:Security Door Controls
MPN:E1200
SKU:E1200
product specifications
Output
12/24 VDC
Type
Magnetic Lock
Color
Stainless Steel
Strike Style
Magnetic
Holding Force
1650 lb
product series specifications
- Supply Voltage:
- 12/24 VDC
- Supply Current:
- :
- E6200, E1200, E600 500 mA @ 12 VDC, 250 mA @ 24 VDC
- :
- E300-SDC 360 mA @ 12 VDC, 180 mA @ 24 VDC
- Holding Force:
- :
- E6200, E1200 1200 lbs
- :
- E600 600 lbs
- :
- E300-SDC 300 lbs
- Contact Rating:
- :
- E6200
- :
- Lock Status Contact SPDT, 250 mA @ 30 VDC
- :
- Door Status Contact SPDT, 250 mA @ 30 VDC
- :
- E1200, E600, E300-SDC
- :
- Lock StatusContact SPDT, 2 A @ 30 VDC
- :
- Door Status Contact SPDT, 250 mA @ 30 VDC
- Dimensions:
- :
- E6200 8"W x 3"H x 1.75"D
- (20.3 x 7.35 x 4.57 cm):
- :
- E1200 10.5"W x 2.87"H x 1.62"D
- (26.6 x 7.3 x 4.1 cm):
- :
- E600 9.87"W x 2.87"H x 1"D
- (25 x 5.1 x 2.6 cm):
- :
- E300-SDC 7"W x 1.625"H x .0875"D
- (17.8 x 4.1 x 2.2 cm):
- Weight:
- :
- E6200 12 lb (5.4 kg)
- :
- E1200 11 lb (4.9 kg)
- :
- E600 5 lb (2.2 kg)
- :
- E300-SDC 2.5 lb (1.1 kg)
- Warranty:
- 1 year
product series features
- E6200
- Retrofits Securitron M62 and Locknetics 70 locks
- Magnetic Bond Sensor indicates door locked with full holding power
- Door Status indicates door open or closed
- Epoxy sealed electronics, tamper resistant and weatherized for indoor and outdoor use
- Stainless steel machine screws and blind nuts
- 10 ft 3.05m jacketed, stranded conductor cable
- Dual voltage 12/24VDC
- Architectural stainless steel housing, US32/630
- E1200 and E600
- Door status, lock status and bi-color LED
- Interlocking quick mount assembly
- Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine screws
- Wire access chamber with terminal block
- 628 Clear anodized aluminum
- E300-SDC
- Lock status and bi-color LED
more information & related documents
Series Description
The value priced Excel™ Architectural Series full featured magnetic locks are easier to install and provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. Full monitoring is standard. The quick mount assembly reduces installation time compared to epoxy sealed magnetic locks. The value priced Excel™ Commercial Series full featured magnetic lock is made of an epoxy sealed satin stainless steel housing and utilizes the same mounting template as major competitive brands. Full monitoring is standard.
Kele Description
E1200 MAGNETIC LOCK DS LS LED
