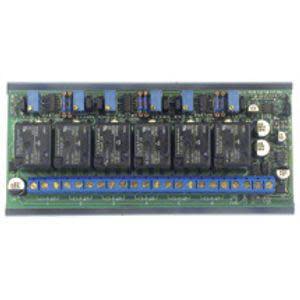

UCS-621E | Kele | Transducers
6-Stage Sequencer
Brand:Kele
MPN:UCS-621E
SKU:UCS-621E
List Price:
$345.00
Today's Price:
$179.40
product specifications
Mount
Snap-track
Output
Pneumatic
Supply Voltage
24 VAC
Type
Electro-Pneumatic
Output Signal
5.3 mA, 4V, 6.6 mA, 5V, 8.0 mA, 6V, 9.3 mA, 7V, 10.7 mA, 8V, 12.0 mA, 9V
Input
Analog
Input Signal
0-20 mA, 0-15 VDC
product series specifications
- Supply Voltage:
- 24 VAC ±10%, half-wave; or 24 VDC ±10%
- Supply Current:
- 220 mA @ 24 VAC; 110 mA @ 24 VDC maximum
- Accuracy:
- ±1%
- Input:
- 0-20 mA or 0-15 VDC, jumper selectable
- Input Impedance:
- 250Ω (mA input); 49.7 kΩ (VDC input)
- Output:
- Six SPDT relays, adjustable via setpoint potentiometers
- Relay Differential:
- Factory set at 0.5 mA or 0.375V, adjustable using plug-in resistors
- Relay Output :
- 10A @ 120 VAC
- Wiring Terminations:
- Screw terminals
- Operating Temperature:
- 32° to 158‚Ñâ (0° to 70‚ÑÉ)
- Operating Humidity:
- 5% to 95% RH (non-condensing)
- Weight:
- 0.7 lb (0.32 kg)
- Approvals:
- RoHS
- Warranty:
- 1 year
product series features
- Six stages of relay control
- Voltage or current input
- 24 VAC/VDC power
- LED indication of relay status
- Adjustable relay setpoints
- Adjustable relay differentials
- Snap-track mounted
more information & related documents
Series Description
The UCS-621E sequencer control module - six stage from Kele is a solid-state device used for multistage control in HVAC systems, sequencing boilers or chillers. The module also sequences floating/tri-state control of VAV boxes from a single analog signal for building automation systems, BAS. The UCS-621E can be used to obtain a digital output from a voltage or current producing sensor. Units may be daisy chained to provide additional stages of control, and a mounting track is supplied for easy installation.
Kele Description
6-STAGE SEQUENCER
Manufacturer
Kele
