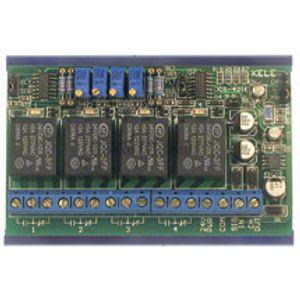

UCS-421E

UCS-421E | Kele | Transducers

4-Stage Sequencer

Brand:Kele

MPN:UCS-421E

SKU:UCS-421E

List Price:

$231.00

Today's Price:

$120.12



Availability: 332 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
catalog page

product specifications

Mount

Snap-track

Output

Pneumatic

Supply Voltage

24 VAC

Type

Electro-Pneumatic

Output Signal

5.3 mA, 4V, 6.6 mA, 5V, 8.0 mA, 6V, 9.3 mA, 7V

Input

Analog

Input Signal

0-20 mA, 0-15 VDC

product series specifications

    Supply Voltage:
  • 24 VAC ±10%, half-wave; or 24 VDC ±10%
    Supply Current:
  • 160 mA @ 24 VAC; 80 mA @ 24 VDC maximum
    Accuracy:
  • ±1%
    Input:
  • 0-20 mA or 0-15 VDC, jumper selectable
    Input Impedance:
  • 250‚Ѷ (mA input); 49.7 k‚Ѷ (VDC input)
    Output:
  • Four SPDT relays, adjustable via setpoint potentiometers
    Relay Differential:
  • Factory set at 0.5 mA or 0.375V, adjustable using plug-in resistors
    Relay Output :
  • 10A @ 120 VAC
    Wiring Terminations:
  • Screw terminals
    Operating Temperature:
  • 32° to 158‚Ñâ (0° to 70‚ÑÉ)
    Operating Humidity:
  • 5% to 95% RH (non-condensing)
    Weight:
  • 0.6 lb (0.25 kg)
    Approvals:
  • RoHS
    Warranty:
  • 1 year

product series features

  • Four stages of relay control
  • Voltage or current input
  • LED indication of relay status
  • Adjustable relay setpoints
  • Adjustable relay differentials
  • Loss of signal feature
  • Snap-track mounted

more information & related documents

Series Description

The Kele UCS-421E is a solid-state device used for multistage control in HVAC systems, sequencing boilers or chillers, or floating/tri-state control of VAV boxes from a single analog signal. The UCS-421E can be used to obtain a digital output from a voltage or current producing sensor. Units may be daisy chained to provide additional stages of control, and a mounting track for easy installation.

Kele Description

4-STAGE SEQUENCER

Manufacturer

Kele
