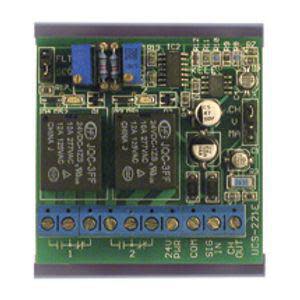

UCS-221E

UCS-221E | Kele | Transducers

2-Stage Sequencer

Brand:Kele

MPN:UCS-221E

SKU:UCS-221E

List Price:

$159.00

Today's Price:

$82.68



Availability: 408 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
catalog page

product specifications

Mount

Snap-track

Output

Pneumatic

Supply Voltage

24 VAC

Type

Electro-Pneumatic

Output Signal

5.3 mA, 4V, 6.6 mA, 5V

Input

Analog

Input Signal

0-20 mA, 0-15 VDC

product series specifications

    Supply Voltage:
  • 24 VAC ±10%, half-wave; or 24 VDC ±10%
    Supply Current:
  • 100 mA @ 24 VAC; 50 mA @ 24 VDC maximum
    Accuracy:
  • ±1%
    Input:
  • 0-20 mA or 0-15 VDC, jumper selectable
    Input Impedance:
  • 250‚Ѷ (mA input); 49.7 k‚Ѷ (VDC input)
    Output:
  • Two SPDT relays, adjustable via setpoint potentiometers
    Relay Differential:
  • Factory set at 0.5 mA or 0.375V, adjustable using plug-in resistors
    Relay Output Rating:
  • 10A @ 120 VAC
    Wiring Terminations:
  • Screw terminals
    Operating Temperature:
  • 32° to 158‚Ñâ (0° to 70‚ÑÉ)
    Operating Humidity:
  • 5% to 95% RH (non-condensing)
    Weight:
  • 0.4 lb (0.18 kg)
    Approvals:
  • RoHS
    Warranty:
  • 1 year

product series features

  • Two stages of relay control
  • Voltage or current input
  • LED indication of relay status
  • Adjustable relay setpoints
  • Adjustable relay differentials
  • Snap-track mounted

more information & related documents

Series Description

The UCS-221E sequencer control module - two stage from Kele is a solid-state device used for multistage control in HVAC systems, sequencing boilers or chillers. The module also sequences floating/tri-state control of VAV boxes from a single analog signal for building automation systems, BAS. The UCS-221E can be used to obtain a digital output from a voltage or current producing sensor. Units may be daisy chained to provide additional stages of control, and a mounting track is supplied for easy installation.

Kele Description

2-STAGE SEQUENCER

Manufacturer

Kele
