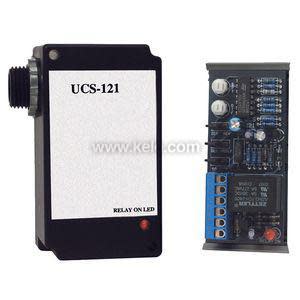

UCS-121

UCS-121 | Kele | Transducers

Sequencer Module - 1 Stage

Brand:Kele

MPN:UCS-121

SKU:UCS-121

List Price:

$133.00

Today's Price:

$69.16



Availability: 361 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
catalog page

product specifications

Mount

DIN Rail

Output

Pneumatic

Supply Voltage

24 VAC

Type

Electro-Pneumatic

Output Signal

5A @ 120 VAC

Input

Analog

Input Signal

0.5-20 mA, 0.75-15 VDC

product series specifications

    Supply Voltage:
  • 24 VAC ±10%, half-wave; or 24 VDC ±10%
    Supply Current:
  • 50 mA @ 24 VAC; 25 mA maximum @ 24 VDC
    Accuracy:
  • ±1%
    Input:
  • 0.5-20 mA or 0.75-15 VDC, jumper selectable
    Input Impedance:
  • 250‚Ѷ (mA input); 10 k‚Ѷ (VDC input)
    Output:
  • One SPDT relay, factory set at 12 mA, 9 VDC; adjustable via setpoint potentiometer
    Relay Differential:
  • Factory set at 0.5 mA or 0.375V, adjustable 0.2-2V or 0.25-3 mA
    Relay Output :
  • 5A @ 120 VAC
    Wiring Terminations:
  • Screw terminals
    Time Constant:
  • 30 seconds, jumper enabled
    Operating Temperature:
  • 32° to 158‚Ñâ (0° to 70‚ÑÉ)
    Operating Humidity:
  • 5% to 95% RH (non-condensing)
    Dimensions:
    :
  • UCS-121 3.3"H x 1.5"W x 1.3"D (8.2 x 3.8 x 3.2 cm)
    :
  • UCS-121-H 4.0"H x 2.3"W x 1.8"D (10.2 x 5.7 x 4.4 cm)
    Weight:
  • 0.2 lb (0.09 kg) without enclosure; 0.3 lb (0.14 kg) with enclosure
    Approvals:
  • RoHS
    Warranty:
  • 1 year

product series features

  • One stage of relay control, SPDT
  • Voltage or current input
  • LED indication of relay status
  • Adjustable relay setpoint
  • Adjustable relay differential
  • Snap-track or hub enclosure
  • Jumper-enabled time constant

more information & related documents

Series Description

The UCS-121 sequencer control module - two stage from Kele is a solid-state device used for multistage control in HVAC systems, sequencing boilers or chillers. The module also sequences floating/tri-state control of VAV boxes from a single analog signal for building automation systems, BAS. The UCS-121 can be used to obtain a digital output from a voltage or current producing sensor. Units may be daisy chained to provide additional stages of control, and a mounting track is supplied for easy installation.

Kele Description

SEQUENCER MODULE - 1 STAGE
