UCP-422-43-47

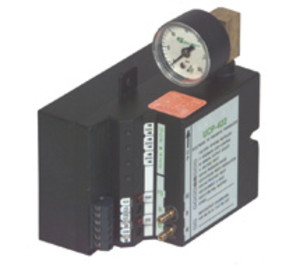

* product series image displayed

UCP-422-43-47 | Kele | Transducers

MA/PSI XDUCER W/PSI IND & DIN

Brand:Kele

MPN:UCP-422-43-47

SKU:UCP-422-43-47

List Price:

$455.00

Today's Price:

$236.60



Availability: 6 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Mount

DIN Rail

Output

Pneumatic

Supply Voltage

24 VAC/VDC

Type

Electro-Pneumatic

Output Signal

0-30 psig, 0-200 kPa

Input

Analog

Input Signal

4-20 mA

product series specifications

    Operating Humidity:
  • 5 to 95% RH (non-condensing)
    Operating Temperature:
  • 32° to 122‚Ñâ (0° to 50‚ÑÉ)
    Meets ARRA or BAA:
  • Yes
    Warranty:
  • 18 months
    Weight:
  • 1.4 lb (0.64 kg)
    Supply VA:
  • 100 mA maximum (half-wave) at 24 VAC, 50 mA at 24 VDC
    Supply Voltage:
  • 24 VAC/VDC
    Air Capacity:
  • 515 scim (135 cm3/s) @ 20 psig (138 kPa) supply, 515 scim (135 cm3/s) @ 20 psig (138 kPa) supply
    Air Connections:
  • Brass barbs for 1/4" OD tubing
    Air Consumption:
  • .008 scfm (3.8 cm3/s) @ 20 psig (138 kPa) supply, .008 scfm (3.8 cm3/s) @ 20 psig (138 kPa) supply
    Hysteresis:
  • 1% of span
    Input:
  • Tri-state; time base 2.55, 5.1, 12.75, 59.9, 90.5, 119.9, or factory-set 25.5 seconds (internally DIP switch selectable), PWM; time base 0.1 to 2.65, 0.1 to 5.2, 0.1 to 12.85, 0.1 to 25.6 (factory setting), or 0.59 to 2.93 seconds (internally DIP switch selectable)
    Input Impedance:
  • 160 k‚Ѷ
    Linearity:
  • 2% of span
    Maximum Pressure:
  • 25 psig (172 kPa)
    Name|SKU:
  • UCP-422-43-44T, UCP-422-43-47, UCP-422-44, UCP-422-44-47, UCP-422-44T, UCP-422-44T-47, UCP422434447, UCP422434447C, UCP4224344C, UCP4224344T47, UCP4224344T47C, UCP4224344TC, UCP4224447C, UCP42244C, UCP42244T47C, UCP42244TC, UCP42FM2434447C, UCP4M24344T47C
    Output:
  • 3-15 psig (21-103 kPa), 3-15 psig (21-103 kPa), manual override, feedback
    Wiring Terminations:
  • Screw terminals

product series features

  • Selectable PWM time base 0.1-2.65, 5.2, 12.85, 25.6, or 0.59-2.93 sec
  • Selectable tri-state time base 2.55, 5.1, 12.75, 25.5, 59.9, 90.5, or 119.9 sec
  • 255-step resolution
  • Positive or negative input reference
  • AC/DC voltage
  • LED indication

more information & related documents

Series Description

The UCO-44 and UCO-44T Options are designed to be used with the Kele UCP-422 Series electronic/pneumatic transducer in HVAC applications and building automation systems, BAS. The UCO-44 Option allows the UCP-422 to be controlled by a pulse-width modulated (PWM) signal. The UCO-44T Option allows the UCP-422 to be controlled by a tri-state input signal. These options are mounted in an expander ring attached to the UCP-422.

Kele Description

MA/PSI XDUCER W/PSI IND & DIN

Manufacturer

Kele
