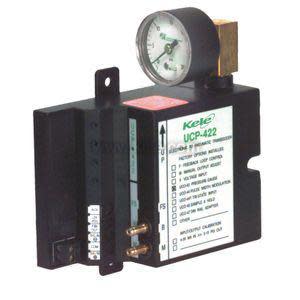

UCP-422-43 | Kele | Transducers
mA/Psi Transducer W/PSI Indicator
Brand:Kele
MPN:UCP-422-43
SKU:UCP-422-43
List Price:
$427.00
Today's Price:
$222.04
product specifications
Mount
DIN Rail
Output
Pneumatic
Supply Voltage
24 VAC
Type
Electro-Pneumatic
Output Signal
0-30 psig, 0-200 kPa
Input
Analog
Input Signal
4-20 mA
product series specifications
- Supply Voltage:
- :
- Without Options None, loop powered
- :
- With Options 24 VAC/VDC
- Supply VA:
- :
- With F, M, V Options 180 mA maximum (half-wave)
- :
- With UCO Options 100 mA maximum (half-wave) at 24 VAC, 50 mA at 24 VDC
- Input:
- 4-20 mA, 2-10 VDC (V option)
- Input Impedance:
- 500Ω @ 4-20 mA, 160 kΩ (V option)
- Output:
- 3-15 psig (21-103 kPa)
- Wiring Terminations:
- Screw terminals
- Air Capacity:
- 515 scim (135 cm3/s) @ 20 psig (138 kPa) supply
- Air Connections:
- Brass barbs for 1/4" OD tubing
- Air Consumption:
- 0.008 scfm (3.8 cm3/s) @ 20 psig (138 kPa) supply
- Maximum Pressure:
- 25 psig (172 kPa)
- Linearity:
- 2% of span
- Hysteresis:
- 1% of span
- Operating Temperature:
- 32° to 122‚Ñâ (0° to 50‚ÑÉ)
- Operating Humidity:
- 5 to 95% RH (non-condensing)
- Weight:
- 1.4 lb (0.64 kg)
- Warranty:
- 1 year
product series features
- Slim-line mounting to save panel space
- Universal mounting tabs
- Totally enclosed
- 1/4 in (0.64 cm) barbed tube connectors
- Quick-disconnect terminals
- Loop-powered control (base model)
- No external filter required
- Excellent linearity
- Low hysteresis
- No calibration required
more information & related documents
Series Description
The UCP-422 Series electronic/pneumatic transducer provides low-cost pneumatic control of valves, dampers, or other pneumatic devices. This electro magnetic transducer consists of a totally-enclosed transducer with provisions for optional DIN rail or surface mounting in either of two planes. These transducers are proven performers in building automation systems, BAS. Externally-mounted pneumatic filters are not required. Quick-disconnect terminals provide easy wiring removal for servicing. With DIN rail mounting this compact device requires only a 4 in H x 2 in W (10.2 x 5.1 cm) mounting area, providing efficient use of panel space.
Kele Description
MA/PSI XDUCER W/PSI IND.
Manufacturer
Kele
