UCP-422

UCP-422 | Kele | Transducers

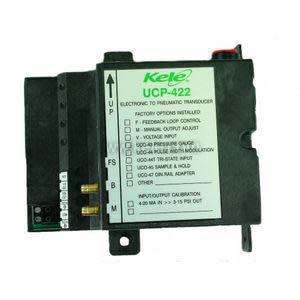

mA/Psi Transducer Enclosed

Brand:Kele

MPN:UCP-422

SKU:UCP-422

List Price:

$377.00

Today's Price:

$196.04



Availability: 12 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Mount

DIN Rail

Output

Pneumatic

Supply Voltage

24 VAC

Type

Electro-Pneumatic

Output Signal

3-15 psig, 21-103 kPa

Input

Analog

Input Signal

4-20 mA

product series specifications

    Supply Voltage:
    :
  • Without Options None, loop powered
    :
  • With Options 24 VAC/VDC
    Supply VA:
    :
  • With F, M, V Options 180 mA maximum (half-wave)
    :
  • With UCO Options 100 mA maximum (half-wave) at 24 VAC, 50 mA at 24 VDC
    Input:
  • 4-20 mA, 2-10 VDC (V option)
    Input Impedance:
  • 500‚Ѷ @ 4-20 mA, 160 k‚Ѷ (V option)
    Output:
  • 3-15 psig (21-103 kPa)
    Wiring Terminations:
  • Screw terminals
    Air Capacity:
  • 515 scim (135 cm3/s) @ 20 psig (138 kPa) supply
    Air Connections:
  • Brass barbs for 1/4" OD tubing
    Air Consumption:
  • 0.008 scfm (3.8 cm3/s) @ 20 psig (138 kPa) supply
    Maximum Pressure:
  • 25 psig (172 kPa)
    Linearity:
  • 2% of span
    Hysteresis:
  • 1% of span
    Operating Temperature:
  • 32° to 122‚Ñâ (0° to 50‚ÑÉ)
    Operating Humidity:
  • 5 to 95% RH (non-condensing)
    Weight:
  • 1.4 lb (0.64 kg)
    Warranty:
  • 1 year

product series features

  • Slim-line mounting to save panel space
  • Universal mounting tabs
  • Totally enclosed
  • 1/4 in (0.64 cm) barbed tube connectors
  • Quick-disconnect terminals
  • Loop-powered control (base model)
  • No external filter required
  • Excellent linearity
  • Low hysteresis
  • No calibration required

more information & related documents

Series Description

The UCP-422 Series electronic/pneumatic transducer provides low-cost pneumatic control of valves, dampers, or other pneumatic devices. This electro magnetic transducer consists of a totally-enclosed transducer with provisions for optional DIN rail or surface mounting in either of two planes. These transducers are proven performers in building automation systems, BAS. Externally-mounted pneumatic filters are not required. Quick-disconnect terminals provide easy wiring removal for servicing. With DIN rail mounting this compact device requires only a 4 in H x 2 in W (10.2 x 5.1 cm) mounting area, providing efficient use of panel space.
