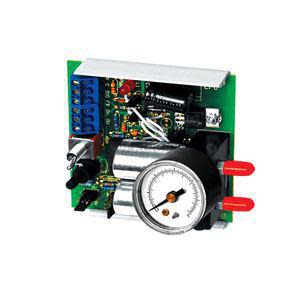

Compact green circuit board with pressure gauge dial and two red slider switches on the right.

EPC2GFS | ACI | Transducers

Analog Input (0-5VDC), Pressure Output (0-10PSI), Dual Valve, Exhausts on Power Failure, Gauge, (0-10V, 0-15V 0-20mA), (0-15PSI, 0-20PSI)

Brand:ACI

MPN:EPC2GFS

SKU:EPC2GFS

List Price:

$790.00

Today's Price:

$410.80

product datasheet

installation instructions

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Type

Electro-Pneumatic

Supply Voltage (Nominal)

24 VAC

Output Signal

Pneumatic

Input Signal

Analog

Mount

Snap Track

product series features

Field selectable input ranges
Analog feedback on branch pressure
Snap track included
Manual override available

more information & related documents

Series Description

The EPC and PXP series are electric to pneumatic tranducers which convert an analog electrical input signal to a proportional pneumatic output. The EPC series offers four selectable input ranges and the output pressure ranges are jumper shunt selectable and adjustable between 0-20PSIG. It also comes with a feedback signal which shows the resulting branch line pressure. The PXP series also offers four selectable input ranges that produce a 0-15PSIG modulating output. The PXP series comes in several optional models to fit your output or signal needs. The PXP100 series offers a 0-100PSIG output.

Kele Description

ANALOG TO PNEU/W/FDBK/FAILSAFE/750 SCIM S/E/GUAGE

Manufacturer

ACI
