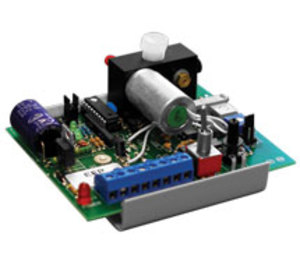

EFP2 | ACI | Transducers
Floating Point Input (45 sec), Pressure Output (0-15PSI), Dual Valve, Maintains Branch Pressure, (90, 60, 120 sec), (0-15PSI, 0-20PSI)
Brand:ACI
MPN:EFP2
SKU:EFP2
List Price:
$720.00
Today's Price:
$374.40
Log in for customized pricingproduct specifications
Type
Electro-Pneumatic
Supply Voltage (Nominal)
24 VAC
Output Signal
Pneumatic
Input Signal
Analog,PWM
Mount
Snap Track
product series specifications
Power: 24 VDC or 24 VAC @ 180 mA
Rate of Change: 45 sec., 90 sec., 1 min., and 2 min. manual override
Input: Floating Point
Input Range: Two Digital (relay, triac, transistor) 9-24 VAC/VDC
Output: Pneumatic & field adjustable
Output Range: Jumper selectable 0-10, 0-15, or 0-20 psig air pressure
Dimensions: 4.0" L x 3.5" W x 1.9" H (10.2 x 8.9 x 4.8 cm)
product series features
- New circuitry-quiet operation
- Intergral 80-100 micron filter in barb fitting
- Four field selectable output ranges
- Analog feedback on branch pressure
more information & related documents
Series Description
Floating Point to Pneumatic Output. Please see Product Information below for specifications.
Kele Description
FLT PT TO PNEU W/FDBK 750 SCIM SUPPLY/EXHAUST
Manufacturer
ACI
Related Documents
EFP Series Datasheet
