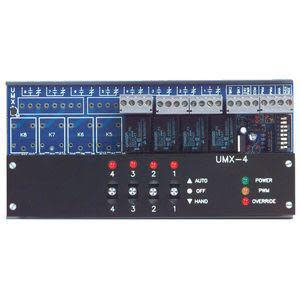

UMX-4

UMX-4 | Kele | Transducers

4 Load Multiplexer

Brand:Kele

MPN:UMX-4

SKU:UMX-4

List Price:

$538.36

Today's Price:

$279.95



Availability: 160 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Mount

DIN Rail

Output

Relay

Supply Voltage

24 VAC

Type

Multiplexers

Output Signal

1-5 VDC for Relays 1-4

Input

Analog

Input Signal

PWM, 0-20 mA, 0-5V, 0-10V, 0-15V

product series specifications

    Supply Voltage:
  • 24 VAC ±10%, half-wave; or 24 VDC ±10%
    Supply Current:
    :
  • UMX-4 210 mA @ 24 VAC; 90 mA @ 24 VDC maximum
    :
  • UMX-8 350 mA @ 24 VAC; 150 mA @ 24 VDC maximum
    Input:
  • PWM, 0-20 mA, 0-5V, 0-10V, 0-15V, jumper selectable
    Input Impedance:
  • 250‚Ѷ (mA input) maximum; 46.4 k‚Ѷ minimum (VDC input)
    Output:
    :
  • UMX-4 Four SPDT relays
    :
  • UMX-8 Eight SPDT relays
    Override:
  • Transistor switch, 30 VDC @ 100 mA maximum
    Feedback:
    :
  • UMX-4 One output, 1-5V (3 mA) for relays 1-4
    :
  • UMX-8 Two outputs, 1-5V (3 mA) for relays 1-4 and for relays 5-8
    Relay Output :
  • 5A @ 24 VAC/VDC
    Wiring Terminations:
  • Screw terminals
    Operating Temperature:
  • 32° to 158‚Ñâ (0° to 70‚ÑÉ)
    Operating Humidity:
  • 5% to 95% RH (non-condensing)
    Dimensions:
  • 3.3"H x 7.0"W x 1.6"D (8.3 x 17.8 x 4.0 cm)
    Weight:
    UMX-4:
  • 0.8 lb (0.4 kg)
    UMX-8:
  • 1.0 lb (0.5 kg)
    Approvals :
  • RoHS
    Warranty:
  • 1 year

product series features

  • Four or eight SPDT relay outputs
  • HOA switches
  • LED status indication
  • Field-selectable functions
  • Output status feedback
  • Override indication
  • Field-selectable PWM, current, or voltage inputs
  • Pull-apart terminal blocks

more information & related documents

Series Description

The UMX-8 multi-function input/output expander is a unique microcomputer-based multifunction interface that expands the input or output capability of building automation controllers. It has eight SPDT output relays that provide on/off control from a jumper-selectable PWM, current or voltage input signal. The sequence of operation can be easily selected by DIP switches. A dual mode allows two UMX-8s to be controlled in sequence from a single input signal. The HOA switch allows for manual override of each relay output. Feedback and LED's provide status indication of the UMX-8. The UMX-4 provides four SPDT output relays. All jumper positions and DIP switch settings are identical to the UMX-8. The operation of the UMX-4 is identical to relays 1-4 on the UMX-8. Feedback and LED's provide status indication of the UMX-4.
