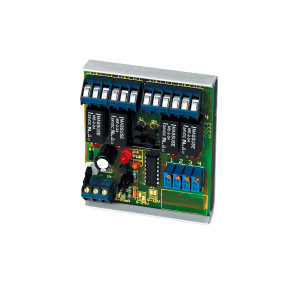

ATL

ATL | ACI | Transducers

Four Adjustable Trip Point Relay Output

Brand:ACI

MPN:ATL

SKU:ATL

List Price:

$326.00

Today's Price:

$169.52



Availability: 3 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
installation instructions
catalog page

product specifications

Mount

Snap-track

Output

Relay

Supply Voltage

24 VAC

Type

Electronic

Output Signal

4 SPDT Form C, Adjustable, 3% Deadband

Input

Analog

Input Signal

0-12 VDC, 0-24 VDC, 0-20 mA

product series specifications

    Power:
  • 24 VAC or 24 VDC @ 180 mA max
    Input:
  • Analog
    Input Ranges:
  • 0-12 VDC @ 10M‚Ѷ, 0-24 VDC @ 20K‚Ѷ and 0-20 mA @ 500‚Ѷ
    Output:
  • Four (4) form C relays (trip level adjustable & fixed deadband)
    Output Ranges:
  • Fixed deadband 3% standard (1% and 10% optional)
    Dimensions:
  • 3.25‚Ä=L x 2.75‚Ä=W x 1.5‚Ä=H (8.26 x 6.99 x 3.81 cm).

product series features

  • Four form C relay outputs
  • Field adjustable trip levels
  • Up to 16 ATL's can be cascaded together

more information & related documents

Series Description

Analog Current or Voltage to Four Adjustable SPDT Relays. Please see Product Information below for specifications.

Kele Description

FOUR ADJUSTABLE TRIP POINT RELAY OUTPUT

Manufacturer

ACI

Related Documents

PDF - ATL Series DatasheetATL Series Datasheet
PDF - ATL Series Installation InstructionsATL Series Installation Instructions
