VTI-1CYBER

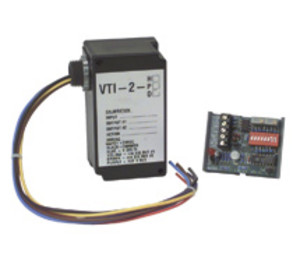

* product family image displayed

VTI-1CYBER | Kele | Transducers

VOLTAGE TO CURRENT TRANSDUCER, PACK OF 5, CYBER QTY DISCOUNT

Manufacturer:Kele

MPN:VTI-1CYBER

SKU:VTI-1CYBER

List Price:

605.00

Today's Price:

240.00



(login for better pricing)
USD
Availability: 252 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Supply Voltage

22-27 VDC, half-wave

Supply Current

VTI-1 50 mA

VTI-2 100 mA

Input

1-19 VDC range (1V minimum span) or 4-40 mA range

Input Signal

Loss threshold 0.7 VDC

Input Impedance

VTI-1 301 kΩ @ 1-19 VDC; 250Ω @ 4-40 mA with 4 mA minimum span; 500Ω @ 2-38 mA with 2 mA minimum span; 750Ω @ 1.3-25 mA with 1.33 mA minimum span

VTI-2 150 kΩ @ 1-19 VDC; 250Ω @ 4-40 mA with 4 mA minimum span; 500Ω @ 2-38 mA with 2 mA minimum span; 750Ω @ 1.3-25 mA with 1.33 mA minimum span

Action

Direct or reverse acting

Linearity

<1% of span

Output

VTI-1 Single

VTI-2 Dual

Output Burden

850Ω maximum @ 24 VDC; Rmaximum=(Vsupply - 7)/20 mA

Output Current

4-20 mA

Output Voltage

Reference voltage 10 VDC @ 15 mA maximum (1-19 VDC input), 6 VDC @ 10 mA maximum (1-11 VDC input)

Wiring Terminations

Screw terminals

Operating Temperature

32° to 158℉ (0° to 70℃)

Operating Humidity

5% to 95% RH (non-condensing)

Dimensions

VTI-1 1.8"H x 2.3"W x 0.8"D (4.5 x 5.7 x 2.2 cm)

VTI-2 4.0"H x 2.3"W x 1.8"D (10.2 x 5.7 x 4.5 cm)

Weight

VTI-1 0.13 lb (0.06 kg)

VTI-2 0.38 lb (0.17 kg)

Approvals

RoHS

Warranty

1 year

product family features

  • Converts voltage, current or potentiometer signal into 4-20 mA signal
  • Direct or reverse acting
  • Loss of input signal results in 0 mA output
  • LED indication of valid input signal (VTI-1)
  • One input dual output model
  • Independently configurable outputs

more information & related documents

Family Description

The VTI Series voltage and current converter/rescaler will convert voltage signals in the range of 1-19 volts into a 4-20 mA non-isolated signal. The voltage to current converter can also convert current signals in the range of 1.33-76 mA into a 4-20 mA non-isolated signal. The resulting current source signal can be direct or reverse acting for a variety of building automation and HVAC applications. These voltage to current converters can be used to drive grounded 4-20 mA loads utilizing a single power supply. The VTI also accepts an input from a resistive potentiometer. The VTI-1 is a single-input, single-output device, and the VTI-2 accepts a single input and provides dual outputs.

Kele Description

VOLTAGE TO CURRENT TRANSDUCER, PACK OF 5, CYBER QTY DISCOUNT

Manufacturer

Kele
