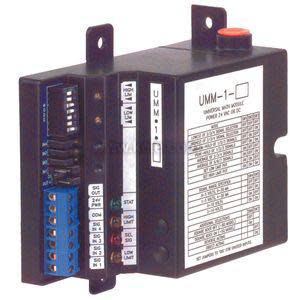

UMM-1

UMM-1 | Kele | Transducers

Universal Math Module-Enclosed

Brand:Kele

MPN:UMM-1

SKU:UMM-1

List Price:

$467.00

Today's Price:

$242.84



Availability: 12 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Mount

DIN Rail

Output

Analog

Supply Voltage

24 VAC

Type

Electronic

Output Signal

0-20 mA, 4-20 mA, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC

Input

Analog

Input Signal

0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-20 mA, 4-20 mA

product series specifications

    Supply Voltage:
  • 24 VAC ±10%, half-wave; or 24 VDC ±10%
    Supply Current:
  • 50 mA maximum @ 24 VDC; 100 mA maximum @ 24 VAC
    Accuracy:
    :
  • Standard ±1% of full scale
    :
  • SQ Model 1% FS @ 25%-100% of range, 1.5% FS @ 10%-25% of range, 2% FS @ 5%-10% of range, 5% FS @ 0%-5% of range
    Input:
  • 4 analog inputs
    Input Signal:
  • 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-20 mA, or 4-20 mA
    Input Impedance:
  • 70 k‚Ѷ with voltage input; 250‚Ѷ with current input
    Wiring Terminations:
  • Screw terminals
    Action:
  • Direct or reverse, DIP switch selectable
    Output:
  • 1 analog output, voltage or current
    Output Burden:
  • 500‚Ѷ minimum @ 5 VDC; 1000‚Ѷ minimum @ 10 VDC; 650‚Ѷ maximum @ 20 mA
    Output Current:
  • Selectable: 0-20 mA or 4-20 mA
    Output Voltage:
  • Selectable: 0-5 VDC, 1-5 VDC, 0-10 VDC or 2-10 VDC
    Wiring Terminations:
  • Screw terminals
    Operating Temperature:
  • 32° to 158‚Ñâ (0° to 70‚ÑÉ)
    Operating Humidity:
  • 5% to 95% RH (non-condensing)
    Dimensions:
    :
  • UMM-1 3.4"H x 2.0"W x 4.8"D (8.6 x 5.1 x 12.4 cm)
    :
  • UMM-2 3.3"H x 4.6"W x 1.0"D (8.3 x 11.8 x 2.5 cm)
    Weight:
    :
  • UMM-1 0.88 lb (0.4 kg)
    :
  • UMM-2 0.44 lb (0.2 kg)
    Approvals:
  • RoHS
    Warranty:
  • 1 year

product series features

  • DIP switch-selectable operating modes
  • Accepts voltage or milliamp input signals
  • LED status indication
  • User-selectable direct or reverse acting
  • Accepts 24 VAC/VDC power
  • Slim-line design housing or snap-track mounted models
  • Furnished with detailed setup instructions

more information & related documents

Series Description

The UMM Series universal math module is a unique multifunction micro-computer based interface that can solve a variety of signal selection and manipulation applications in building automation systems, BAS, and other environments. The UMM-1 is furnished in a unique slim-line design housing, which saves panel space. It can be ordered with an optional DIN rail-mounting adapter. The UMM-2 is a snap-track mounted version that operates the same as the UMM-1. These universal math modules accept up to four analog inputs, providing a single analog output according to the selected operating mode. This versatile product allows the user to select from many operating modes.
