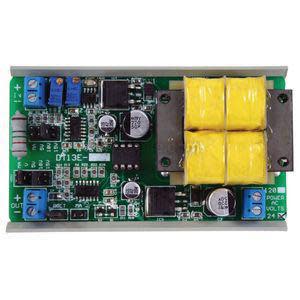

DT13E-24

DT13E-24 | Kele | Transducers

DC To DC Isolator 24VAC

Brand:Kele

MPN:DT13E-24

SKU:DT13E-24

List Price:

$320.94

Today's Price:

$166.89



Availability: 224 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Mount

Snap-track

Output

Analog

Supply Voltage

24 VAC

Type

Electronic

Output Signal

0/4-20 mA, 650 Ohm, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-15 VDC, 3-15 VDC, 6 mA

Input

Analog

Input Signal

0-20 mA, 4-20 mA, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-15 VDC, 3-15 VDC

product series specifications

    Supply Voltage:
    :
  • DT13E-120 120 VAC ±10%, 50/60 Hz
    :
  • DT13E-24 24 VAC ±10%, 50/60 Hz
    Supply VA:
    :
  • DT13E-120 6 VA
    :
  • DT13E-24 12 VA
    Input:
  • Current or voltage, jumper selectable
    Input Signal:
  • 0-20 mA, 4-20 mA, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-15 VDC, or 3-15 VDC
    Input Impedance:
  • 20 k‚Ѷ @ 5VDC; 13.3 k‚Ѷ @ 10 VDC; 12 k‚Ѷ @ 15 VDC; 125‚Ѷ maximum @ 20 mA
    Linearity:
  • Better than 0.5% of span
    Isolation:
  • 1000 V (DC or AC peak) maximum
    Output:
  • Current or voltage, jumper selectable, zero/span adjustable to 20% offset
    Output Current:
  • 0/4-20 mA, 650‚Ѷ maximum load
    Output Voltage:
  • 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-15 VDC, or 3-15 VDC; 6 mA maximum load
    Response Time:
  • 70 ms typical
    Wiring Terminations:
  • Screw terminals
    Operating Temperature:
  • 14° to 140‚Ñâ (-10° to 60‚ÑÉ)
    Operating Humidity:
  • 5% to 95% RH (non-condensing)
    Dimensions:
  • 2.3"H x 5.0"W x 1.3"D (5.7 x 12.7 x 3.2 cm)
    Weight:
  • 0.65 lb (0.3 kg)
    Approval :
  • RoHs
    Warranty:
  • 1 year

product series features

  • Eliminates ground loop wiring problems
  • Multiple input/output ranges are jumper-selectable
  • 24 and 120 VAC powered models
  • Snap-track mounting for easy installation

more information & related documents

Series Description

The Kele DT13E is a signal isolator that accepts a current or voltage input and provides a linearly transferred current or voltage output. The input and output are electrically isolated, making the DT13E useful for ground-loop elimination, common-mode signal rejection and noise pickup reduction. The DT13E is designed to function effectively in electrically noisy environments. The DT13E can interface with recorders, data loggers, personal computers, programmable controllers, HVAC controllers, building automation controllers, variable speed drives, and other process monitoring and control systems. Snap-track is included for easy mounting.

Kele Description

DC TO DC ISOLATOR 24VAC

Manufacturer

Kele
