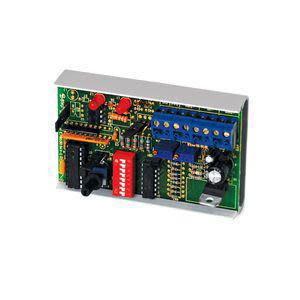

PTA | ACI | Transducers
Pulse Width Modulation Input (0.1 to 10 sec), Analog Output, (0.02 to 5, 0.59 to 2.93, 0.1 to 25.5s Selectable)
Brand:ACI
MPN:PTA
SKU:PTA
List Price:
$315.00
Today's Price:
$163.80
Log in for customized pricingproduct specifications
Type
Universal Analog Converter
Supply Voltage (Nominal)
24 VAC
Output Signal
Analog,Digital
Input Signal
PWM
Mount
Snap Track
product series specifications
Power: 24-35 VDC or 21.6 to 26.3 VAC 50/60 Hz @ 250 mA
Input: PWM (relay, transistor, or triac): 0.02-5, 0.023-6, 0.1-10, 0.1-25.5, or 0.59-2.93, 0-10 sec, 0-10 sec. duty cycle pulse
Output: Analog (voltage or current)
Output Range: (Adjustable or Fixed) 0-20 VDC or 0-20 mA
product series features
- 10 field selectable outputs
- LED status indicators
- Snap track included
more information & related documents
Series Description
Pulse Width Modulation (PWM) to Analog Current or Voltage Output. Please see Product Information below for specifications.
Kele Description
PULSE WIDTH MODULATION TO ANALOG OR VOLTAGE OUTPUT
Manufacturer
ACI
Related Documents
PTA Series Datasheet
