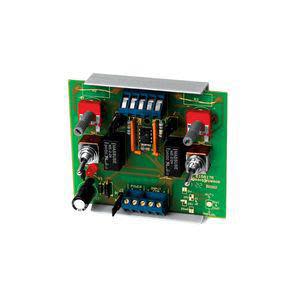

MAO | ACI | Transducers

Supply Voltage: 24 VAC or 24 VDC, ±10%

Supply Current: 100 mA maximum

Current Rating: 2 Amps maximum

Accuracy: ±4% of maximum output

Input: Analog

Input Range (Selectable): 0-5 VDC/250 Ω min, 0-10 VDC/500 Ω min, 0-15 VDC/750 Ω min, 0-20 mA/750 Ω max

Input Range (Override): 0-24 VDC/2A maximum

Alarm Output: N.O. in auto, N.C. in manual (optional: N.C. in auto, N.O. in manual)

Optional Resistive Alarm Output: 2 Watts or 2 Amps maximum (state resistance value when ordering)

Output Range (Override): 0-24 VDC/2A maximum or same as override input

Operating Temperature: 32° to 120°F (0 to 49°C)

Operating Humidity: 10% to 95%, non-condensing

Dimensions: 3.75"L x 3.25"W x 1.25"H (9.5 x 8.3 x 3.2 cm)
