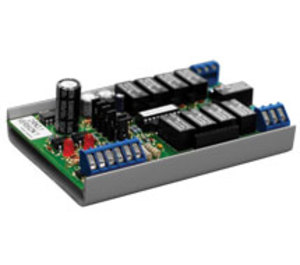

* product series image displayed

DRN3-1-0-10K | ACI | Transducers

ANALOG/PWM/FLTNG PT TO 0-10K OHM RESISTANCE

Brand:ACI

MPN:DRN3-1-0-10K

SKU:DRN3-1-0-10K

List Price:

$-.--

Today's Price:

$-.--

catalog page

product specifications

Type

Resistance Converter

Output

Resistance

Supply Voltage (Nominal)

24 VAC

Output Signal

0-10K OHM

Mount

Snap-track

product series features

8 ANALOG voltage/current input signal ranges
6 selectable PULSE input ranges
6 selectable FLOATING POINT ramp rates
Removable plugg-in resistive network
Fail-safe to original controller or fixed value
Custom pulse ranges and rates of change
Snap track included

more information & related documents

Series Description

The ACI DRN3.1 Series Electronic Transducer is an interface that allows microprocessor control of a variable resistance. The DRN3.1 has on-board fail-back relays that lock out the original resistive signal during DRN3.1 operation. An easy local override can be made by placing a fixed (or variable) resistor between W and R Fail-safe terminals. There are LED indicators for power and input signals. The DRN3.1 accepts an ANALOG, PULSE, or FLOATING POINT input signal (including triac) and converts it into a proportional resistive output. The output resistance does not wrap around if the input signal exceeds the highest or lowest selected input value.

Kele Description

ANALOG/PWM/FLTNG PT TO 0-10K OHM RESISTANCE

Manufacturer

ACI
