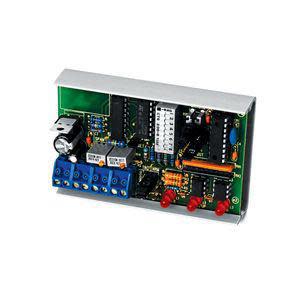

AUD | ACI | Transducers
Floating Point Input (5 sec), Analog Output, Version 1, (15, 30, 90 sec Selectable)
Brand:ACI
MPN:AUD
SKU:AUD
List Price:
$386.00
Today's Price:
$200.72
Log in for customized pricingproduct specifications
Type
Universal Analog Converter
Supply Voltage (Nominal)
24 VAC
Output Signal
Analog,Digital
Input Signal
Analog,PWM
Mount
Snap Track
product series specifications
Power: 24-35 VDC or 24 VAC (50/60 Hz) @ 208 mA
Trigger Level: 5-26.4 VDC or 24-26.4 VAC (50/60 Hz)
Rate of Change: 5 to 360 seconds
Input: Floating Point
Two Digital Inputs: Contact closure, transistor, or Triac
Output: Analog (voltage or current)
Output Ranges: 10 presets from 0-1 VDC to 0-20 VDC and 0-20 mA
Dimensions: 3.75" x 2.25" x 1.15" (9.53 x 5.72 x 2.92 cm)
product series features
- Field selectable rate of change
- 256 step resolution
- No wrap around
- Relay, transistor or triac input
more information & related documents
Series Description
Floating Point to Analog Output.
Kele Description
FLOATING POINT TO ANALOG OUTPUT
Manufacturer
ACI
Related Documents
AUD Series Datasheet
