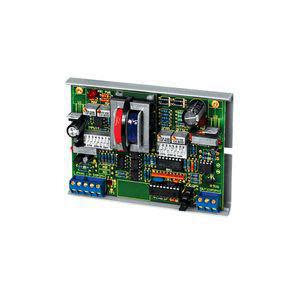

AIM2 | ACI | Transducers
Analog Input, Analog Output, Analog Isolation Module w/ Rescaling
Brand:ACI
MPN:AIM2
SKU:AIM2
List Price:
$576.00
Today's Price:
$299.52
Log in for customized pricingproduct specifications
Type
Signal Isolator
Supply Voltage (Nominal)
24 VDC
Output Signal
Analog,Digital
Input Signal
Analog
Mount
Snap Track
product series specifications
Power: 24 VAC @ 200 mA max. Source or sink inputs & outputs
Input: Analog
Input Ranges: 0-1, 0-5, 1-5, 0-10, and 2-10 VDC @ 9.5kΩ, 0-1, 0-20 & 4-20 mA @ 250Ω
Output: Analog (isolated, rescale, & limit)
Output Ranges: Same except for 0-1 VDC @ 5kΩ, & 0-20 mA @ 500Ω
Dimensions: 4.6"L x 3.3"W x 1.2"H (11.7 x 8.4 x 3.1 cm)
product series features
- Accepts any input signal 0-20v or 0-20ma
- Preset or adjustable inputs and outputs
- Requires one (1) external 24 VAC transformer for power
more information & related documents
Series Description
Analog Adjustable Input to Optically Isolated Analog Output (Rescales & Limits Output). Please see Product Information below for specifications.
Kele Description
RESCALING ANALOG ISOLATION MODULE
Manufacturer
ACI
Related Documents
AIM2 Series Installation Guide
