23070T | Southwire | Tools & Test Equipment

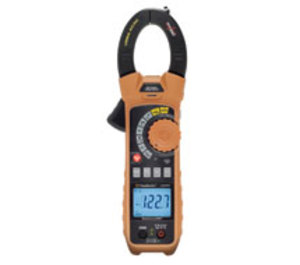

CLAMP METER 1000A TRUE RMS AC/DC
Brand:Southwire
MPN:23070T
SKU:23070T
List Price:
$714.00
Today's Price:
$371.28
Availability: Usually Ships in Less Than 9 Business Days
product specifications
Measurement Range
41 to 104 °F, 5 to 40 °C
Power Supply
1-9V Battery
Type
Clamp Meter
Width
3.3 in
Height
1.7 in
Length
10.3 in
Display
LCD
product series specifications
- Safety Rating:
- CAT IV 600V/Cat III 1000V
- AC Response:
- TrueRMS
- Clamp Size:
- 1.5‚Ä= (38mm)
- Operation:
- Autoranging
- Auto Power Off (APO):
- 30 min. (approximately)
- Display:
- 6,000 count backlit LCD
- Operating Temperature:
- 41‚Ñâ - 104‚Ñâ (5‚ÑÉ - 40‚ÑÉ)
- Storage Temperature:
- -4‚Ñâ - 140‚Ñâ (-20‚ÑÉ - 60‚ÑÉ)
- Batteries:
- One 9V Battery
- Dimensions:
- 10.3‚Ä=H x 3.3‚Ä=W x 1.7‚Ä=D
- :
- (262 x 84 x 43 mm)
- Weight:
- 0.69 lb (315g)
- :
product series features
- 11 Measuring functions
- Powerful LED work light
- Built in non-contact AC voltage detector
- 6,000 count backlit display
- Rugged meter with CAT IV 600V / CAT III 1000V
more information & related documents
Series Description
The Southwire's MaintenancePRO™ 23030T and 23070T clamp meters are rugged high end AC and AC/DC 1000A clamp meters for the serious electrician. With a UL listed safety rating of CAT IV 600V/CAT III 1000V, these clamp meters are built to get the tough jobs done. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
CLAMP METER 1000A TRUE RMS AC/DC
Manufacturer
Southwire
Related Documents
Southwire 23070T Datasheet x
