ASG-CABLE

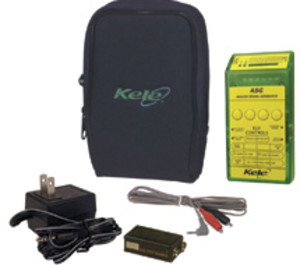

* product series image displayed

ASG-CABLE | Kele | Tools & Test Equipment

REPLACEMENT CABLE FOR ASG

Brand:Kele

MPN:ASG-CABLE

SKU:ASG-CABLE

List Price:

$67.96

Today's Price:

$35.34



Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Type

Accessory

Accessory Type

Cable

product series specifications

    Supply Voltage:
  • 9V battery or 120 VAC plug-in power supply
    Battery Life:
  • 30 hours
    Accuracy at 72°F:
    Current :
  • ±0.5% FS or ±0.1 mA
    Voltage :
  • ±0.5% FS or ±0.05 VDC
    Output Impedance:
    Voltage:
  • 1000‚Ѷ minimum
    Current :
  • 300‚Ѷ maximum
    Output:
  • 0-20 mA (2 mA increments)
    0-10 VDC (1 VDC increments):
    Auto Shutoff Times:
  • 2-20 minute (2-minute increments)
    Ramping Time Intervals:
  • 2-20 second (2-second increments)
    Resolution:
    Current :
  • 2 mA
    Voltage :
  • 1 VDC
    Accessories included :
  • 6' (1.83m) wire leads, carrying case
    Operating Temperature:
  • 32° to 122°F (0° to 50°C)
    Weight:
  • 0.66 lb (0.29 Kg) with accessories
    Approvals:
  • RoHS
    Warranty:
  • 1 year

product series features

  • Powered by 9V battery or plug-in power supply
  • Pocket size with carrying case
  • Bar graph LED for signal display
  • 0-20 mA (2 mA increments)
  • 0-10 VDC (1 VDC increments)
  • Ramp function to minimum and maximum values
  • Variable ramp function timing
  • Low battery indication
  • User-defined auto shutoff times for battery conservation
  • Separate milliamp and voltage output jacks
  • 6' (1.83m) leads with alligator clips
  • Perfect for loop-powered circuits and externally powered circuits

more information & related documents

Series Description

The Kele ASG analog signal generator is a handheld, battery-powered or plug-in powered, pocket-size analog signal generator. The signal generator creates a 0-10 volt DC signal in increments of 1 volt or a 0-20 mA signal in increments of 2 mA. The LED bar graph visually indicates analog signal level. The ASG can also continuously ramp to user-defined minimum or maximum values with user-defined ramp-time settings.

Kele Description

REPLACEMENT CABLE FOR ASG

Manufacturer

Kele

Related Documents

PDF - ASG DatasheetASG Datasheet
