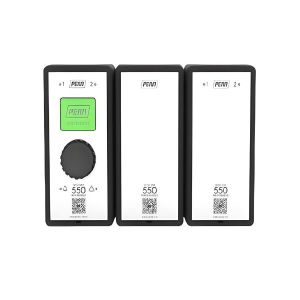

* product series image displayed

C550CCN-001C | Johnson Controls | Thermostats & Controllers

SYSTEM 550 CONTROL MODULE, THREE SENSOR INPUTS, TWO RELAY OUTPUTS, 0-10 VDC OUTPUT INDIVIDUAL PACK

Brand:Johnson Controls

MPN:C550CCN-001C

SKU:C550CCN-001C

List Price:

$623.00

Today's Price:

$323.96

Lead time of > 15 days. Chat with Kele experts now

product specifications

Controls Outputs

0-10 VDC

Type

Multi-Stage Controller

Display

LCD

Set Point Range

-40°F to 150°F (-40°C to 66°C)

Supply Voltage (Nominal)

24 VAC

product series specifications

Sensor inputs: Any combination of up to three temperatures, humidity, or pressure sensor inputs

Number of analog outputs: Two

Maximum number of outputs including expansion modules: Ten. Any combination of relay and analog outputs.

Display: Dot-matrix full-character LCD display with adjustable backlight

Power consumption: 3 VA maximum

Supply power: A maximum of one wired power supply from the following options:

Internal supply power: C550YNN-1C Power Supply Module with line voltage connection

External supply power: 24 VAC (20 VAC to 30 VAC) Class 2 (North America), 50/60 Hz, safety extra-low voltage (SELV) (Europe), 10 VA minimum; 24 VDC ±10%, 10 W minimum

product series features

No calibration needed
Embedded self-diagnostics
Fast response time
No false positives
Modbus output

more information & related documents

Series Description

The System 550 is a modular electronic control system that provides single- or multi-stage on/off, proportional, or proportional-plus-integral control of temperature, humidity, pressure, or a combination thereof. The modularity enables customers to purchase only the modules they need for their unique application.

Kele Description

SYSTEM 550 CONTROL MODULE, THREE SENSOR INPUTS, TWO RELAY OUTPUTS, 0-10 VDC OUTPUT INDIVIDUAL PACK

Manufacturer

Johnson Controls
