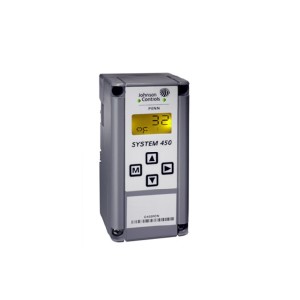

C450CEN-1C

C450CEN-1C | Johnson Controls | Thermostats & Controllers

CONTROL MODULE WEB WITH ETHERNET

Manufacturer:Johnson Controls

MPN:C450CEN-1C

SKU:C450CEN-1C

list price:

752.38

376.19



(login for better pricing)
USD

availability:Usually Ships in Less Than 7 Business Days

add to cart

arrow

product family specifications

Supply Power Module

C450YNN-1

Input 110/120 VAC or 220/240 VAC @ 50/60 Hz

Output 24 VAC, 10 VA max.

Control Modules vA

C450CPN-1C 1.3 VA maximum using 0-10V out

1.5 VA maximum using 4-20 mA out

C450CQN-1C 2.0 VA maximum using 0-10V out

2.4 VA maximum using 4-20 mA out

C450CBN-1C 0.9 VA maximum

C450RBN-1C 0.9 VA maximum

C450CCN-1C 1.3 VA maximum

C450RCN-1C 1.3 VA maximum

C450SPN-1C 1.1 VA maximum using 0-10V out

1.3 VA maximum using 4-20 mA out

C450SQN-1C 1.8 VA maximum using 0-10V out

2.2 VA maximum using 4-20 mA out

C450SBN-1C 0.8 VA maximum

C450SCN-1C 1.2 VA maximum

Setpoint

Temperature (A99) -40° to 250℉ (-40° to 121℃)

RH 0-100%

Pressure Per Sensor Range

Input Signal

Temperature 1,035Ω at 25°C (77°F) for A99 PTC

RH 0-5 VDC

Pressure 0.5 to 4.5 VDC

Analog Output

Voltage Mode

(0-10 VDC)

Current Mode

(4-20 mA) load between 0-300Ω

Relay Outputs

SPDT 1/2 HP at 120/240 VAC, SPDT

AC Motor Ratings 120 VAC 208/240 VAC

AC Full-load Amperes: 9.8A 4.9A

AC Locked-Rotor Amperes: 58.8A 29.4A

10A AC Non-inductive at 24/240 VAC

Pilot Duty: 125 VA at 24/240 VAC

Mounting

Lexan 950 enclosure suitable for DIN rail mounting or direct surface mount

Operating Temperature

0-10V & Relays -40° to 150°F (-40° to 66°C)

4-20 mA -40 to 104°F (-40° to 40°C)

Operating Humidity

0 to 95% RH (non-condensing)

Dimensions

5.0”H x 2.4”W x 2.4”D

(12.7 x 6.1 x 6.1 cm)

Weight

C450CPN-1C 0.43 lb (0.19 Kg)

C450CQN-1C 0.43 lb (0.19 Kg)

C450CBN-1C 0.46 lb (0.21 Kg)

C450RBN-1C 0.46 lb (0.21 Kg)

C450CCN-1C 0.49 lb (0.22 Kg)

C450RCN-1C 0.49 lb (0.22 Kg)

C450SPN-1C 0.33 lb (0.15 Kg)

C450SQN-1C 0.33 lb (0.15 Kg)

C450SBN-1C 0.38 lb (0.17 Kg)

C450SCN-1C 0.41 lb (0.18 Kg)

C450YNN-1C 0.86 lb (0.39 Kg)

Approvals

North America UL File #E27734, FCC Compliant to CFR47, Part 15, Subpart B, Class B Industry Canada (IC) Compliant to Canadian ICES-003, Class B limits

Europe CE Compliant; Low Voltage Directive (2006/95/EC); EMC Directive (2004/108/ED); RoHS Directive (2002/95/EC); WEEE Directive (2002/96/EC) Australia C-Tick Compliant (N1813)

Warranty

3 years

product family features

  • Versatile all-in-one stand-alone control modules provide for scalable digital and/or analog control for temperature, pressure, and humidity
  • Plug-together modules for DIN rail or direct mounting
  • Field-configurable, and designed for typical field component devices
  • Backlit LCD and 4-button touch pad user interface
  • Up to 3 inputs and up to 10 outputs allow flexibility in configuring systems from simple to complex

more information & related documents

Family Description

The System 450 from Johnson Controls/PENN is a family of modular digital electronic controllers that is easily assembled and configured to provide reliable temperature, pressure, and humidity control for a wide variety of commercial HVAC and industrial process applications. The System 450 is designed to replace the System 350 and System 27, and provide many additional features and benefits with a small number of model variations. All of the modules are field configurable out-of-the-box and can monitor and control temperature, pressure and humidity simultaneously.

Kele Description

CONTROL MODULE WEB WITH ETHERNET
