T775R2043

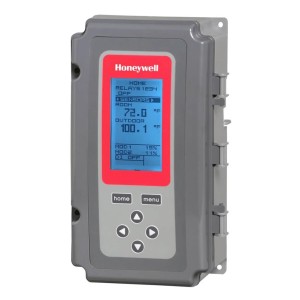

* product family image displayed

T775R2043 | Honeywell | Thermostats & Controllers

2 OUTPUT PROP RESET CTLR

Manufacturer:Honeywell

MPN:T775R2043

SKU:T775R2043

List Price:

$920.00

Today's Price:

$478.40



Availability: Usually Ships in Less Than 12 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product family specifications

    Supply Voltage:
  • 24 @ 10 VA, 120, or 240 VAC, 50/60 Hz
    Display:
  • Backlit digital 2.5" x 1.5",
    :
  • configurable °F or °C
    Operation:
  • 6-key, menu-driven, with simple programming lock
    Memory:
  • Program is non-volatile; time is retained for 24 hours
    Clock:
  • 12 hour (AM/PM) for night setback/shutdown, daylight savings time enable/disable
    Scheduling:
  • 7-day, two events per day
    Setpoint:
  • Model specific (see I/O configuration table)
    :
  • Temperature -40° to 248°F (-40° to 120°C)
    :
  • Humidity (T775U) 0-100%
    :
  • Pressure (T775U) -500 to 500 psi, -30 to 30 inches W.C., -3000 to 3000 Pa or kPa
    Signal Input:
  • Model-specific (see I/O configuration table)
    :
  • Temperature RTD 1.1 k at 77°F, PTC, 2.1 /°F, Platinum 1 k‚Ѷ at 32°F, 385 curve
    :
  • Digital input Dry contact, all models (Used for system shutdown or night setback)
    :
  • Analog (T775U) 0-10 VDC, 4-20 mA
    Input Calibration:
  • Temperature offset ±10°F
    :
  • Universal offset ±10% of scale
    Signal Output:
  • Model-specific (see I/O configuration table)
    :
  • Relays/tri-state 10A at 24 VAC (resistive), 1/2 hp at 120 VAC
    :
  • 125 VA pilot duty
    :
  • Modulating 0 or 2-10 VDC, 2 k‚Ѷ minimum impedance
    :
  • 4-20 mA, 600‚Ѷ maximum impedance
    :
  • Series 90, 135‚Ѷ
    Temperature Sensor:
  • Included in all T775-A,B,L,M,P,R versions
    :
  • Probe (50021579-001) 8" leads
    :
  • Range -60°F to 270°F (-51° to 132°C)
    :
  • Accuracy ±1°F at 77°F
    Control Type:
  • Model-specific (see I/O configuration table)
    :
    :
  • Relay on/off Differential control, adjustable ±1° to ±150°F
    :
  • Modulating PI or PID, with adjustable tuning
    :
  • Throttling range ±1° to ±150°F
    :
  • Derivative and integral times 0 to 3600 seconds
    :
  • Multiple loops depending on model
    Wiring:
  • Terminal blocks separated by function
    Enclosure:
  • Plenum rated plastic, UL94V NEMA 1, NEMA 4X versions Hinged cover with LCD window Five (1/2") knockouts on four sides
    Color:
  • Two-tone grey
    Mounting:
  • Surface screw tabs or DIN rail
    Operating Temperature:
  • -40° to 140°F (-40° to 60°C)
    Operating Humidity:
  • 5% to 95% RH (non-condensing)
    Dimensions:
  • 8.2"H x 4.9"W x 3"D
    :
  • (20.7 x 12.5 x 7.4 cm) Door opens out 4" (10.2 cm)
    Weight:
  • 2.2 lb (1.0 Kg)
    Approvals:
  • UL Ffile #E4436, CE, C-tick, FCC
    Warranty:
  • 1 year

product family features

Standalone controller,Multiple power input (24, 120, or 240 VAC),Single- or dual-loop models,Throttling range, PI and PID tunable modulating models,Adjustable differential two-position models,Humidity, pressure, and universal input models,Two-position 10A relay model,Analog output 0 or 2 to 10 VDC, 4-20 mA, and 135ohm models,Integral seven-day time clock for night setback or shutdown,Remote night setback or shutdown input,degrees F or degrees C temperature display RH, PSI, In W.C. on W Models,Daylight savings time compensation

more information & related documents

Family Description

The Model T775 single- or multi-loop standalone controller is a standalone multi-point and multi-loop controller designed for a wide range of applications. The I/O point mix is unit-specific with temperature, humidity, and pressure input models available. Relay or analog output models may be selected as well. Single-loop, two-loop, and reset controllers may be selected, all including a seven-day time clock for output disable or night setback. The relay output controllers have adjustable differential control algorithms. Analog output controllers have adjustable throttling range; proportional plus integral (PI); or proportional, integral, and derivative (PID) control. The backlit display is easy to read, and the menu-driven setup is simple. The T775 is available in NEMA 1 or NEMA 4X enclosures for the most demanding environments.

Kele Description

2 OUTPUT PROP RESET CTLR
