T775M2048

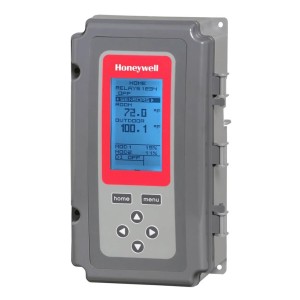

* product family image displayed

T775M2048 | Honeywell | Thermostats & Controllers

2 ANALOG OUTPUT PROP CTLR W/ 2 ON/OFF

Manufacturer:Honeywell

MPN:T775M2048

SKU:T775M2048

List Price:

879.00

Today's Price:

492.24



(login for better pricing)
USD
Availability: 14 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Supply Voltage

24 @ 10 VA, 120, or 240 VAC, 50/60 Hz

Display

Backlit digital 2.5" x 1.5",

configurable °F or °C

Operation

6-key, menu-driven, with simple programming lock

Memory

Program is non-volatile; time is retained for 24 hours

Clock

12 hour (AM/PM) for night setback/shutdown, daylight savings time enable/disable

Scheduling

7-day, two events per day

Setpoint

Model specific (see I/O configuration table)

Temperature -40° to 248°F (-40° to 120°C)

Humidity (T775U) 0-100%

Pressure (T775U) -500 to 500 psi, -30 to 30 inches W.C., -3000 to 3000 Pa or kPa

Signal Input

Model-specific (see I/O configuration table)

Temperature RTD 1.1 k at 77°F, PTC, 2.1 /°F, Platinum 1 kΩ at 32°F, 385 curve

Digital input Dry contact, all models (Used for system shutdown or night setback)

Analog (T775U) 0-10 VDC, 4-20 mA

Input Calibration

Temperature offset ±10°F

Universal offset ±10% of scale

Signal Output

Model-specific (see I/O configuration table)

Relays/tri-state 10A at 24 VAC (resistive), 1/2 hp at 120 VAC

125 VA pilot duty

Modulating 0 or 2-10 VDC, 2 kΩ minimum impedance

4-20 mA, 600Ω maximum impedance

Series 90, 135Ω

Temperature Sensor

Included in all T775-A,B,L,M,P,R versions

Probe (50021579-001) 8" leads

Range -60°F to 270°F (-51° to 132°C)

Accuracy ±1°F at 77°F

Control Type

Model-specific (see I/O configuration table)

Relay on/off Differential control, adjustable ±1° to ±150°F

Modulating PI or PID, with adjustable tuning

Throttling range ±1° to ±150°F

Derivative and integral times 0 to 3600 seconds

Multiple loops depending on model

Wiring

Terminal blocks separated by function

Enclosure

Plenum rated plastic, UL94V NEMA 1, NEMA 4X versions Hinged cover with LCD window Five (1/2") knockouts on four sides

Color

Two-tone grey

Mounting

Surface screw tabs or DIN rail

Operating Temperature

-40° to 140°F (-40° to 60°C)

Operating Humidity

5% to 95% RH (non-condensing)

Dimensions

8.2"H x 4.9"W x 3"D

(20.7 x 12.5 x 7.4 cm) Door opens out 4" (10.2 cm)

Weight

2.2 lb (1.0 Kg)

Approvals

UL Ffile #E4436, CE, C-tick, FCC

Warranty

1 year

product family features

  • Standalone controller
  • Multiple power input (24, 120, or 240 VAC)
  • Single- or dual-loop models
  • Throttling range, PI and PID tunable modulating models
  • Adjustable differential two-position models
  • Humidity, pressure, and universal input models
  • Two-position 10A relay model
  • Analog output 0 or 2 to 10 VDC, 4-20 mA, and 135Ω models
  • Integral seven-day time clock for night setback or shutdown
  • Remote night setback or shutdown input
  • ℉ or ℃ temperature display RH, PSI, In W.C. on W Models
  • Daylight savings time compensation

more information & related documents

Family Description

The Model T775 single- or multi-loop standalone controller is a standalone multi-point and multi-loop controller designed for a wide range of applications. The I/O point mix is unit-specific with temperature, humidity, and pressure input models available. Relay or analog output models may be selected as well. Single-loop, two-loop, and reset controllers may be selected, all including a seven-day time clock for output disable or night setback. The relay output controllers have adjustable differential control algorithms. Analog output controllers have adjustable throttling range; proportional plus integral (PI); or proportional, integral, and derivative (PID) control. The backlit display is easy to read, and the menu-driven setup is simple. The T775 is available in NEMA 1 or NEMA 4X enclosures for the most demanding environments.

Kele Description

2 ANALOG OUTPUT PROP CTLR W/ 2 ON/OFF

Manufacturer

Honeywell
