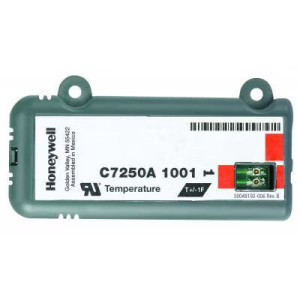

C7250A1001/U | Honeywell | Thermostats & Controllers

ELECTRONIC 20K TEMPERATURE SENSOR

Brand:Honeywell

MPN:C7250A1001/U

SKU:C7250A1001/U

List Price:

$82.82

Today's Price:

$43.07



Availability: 2 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Type

Wall

Set Point Range

50 to 100 °F

Controls Outputs

0/2-10 V or 4-20 MA

Supply Voltage (Nominal)

24 VAC

product series specifications

    Voltage::
  • 24 VAC ±20%, 50/60 Hz
    Power::
  • 11.5 VA
    Ambient temp::
  • -40° to 149°F (-40° to 65°C)
    Humidity::
  • 5% to 95% non condensing
    Outputs::
    Exhaust fan::
  • SPST, 24 VAC 1.5A
    Damper::
  • 2-10 VDC, min impedance 1k ohm
    Inputs::
    Temp or enthalpy::
  • (C7400/C7660) 4-20 mA
    Mixed-air sensor::
  • (C7150) Type 22 thermistor
    Occupancy::
  • SPST
    CO2 sensor::
  • (C7232A) 2-10 VDC 100k ohm input impedance
    Agency approvals::
  • UL873 file E4436, Flammability Rating UL94-5VB plenum rated, CE, C-tick
    Dimensions::
  • 4 3/8‚Äù W x 4 1/8"H x 1 5/8"D (11 x 10.47 x 4.11 cm)
    Weight::
  • 2.1 lb (0.95 kg)
    Warranty::
  • 1 year

product series features

  • Operates from thermostat and Demand Control Ventilation sensor to provide a totally integrated control system
  • Solid-state control package provides accurate, reliable and stable control.
  • Control can be tempered by Demand Control Ventilation and fan cycling
  • The W7212 is used with Honeywell Series 72 actuators
  • Combines minimum and Demand Control Ventilation maximum damper position potentiometers and compressor staging relay functions with solid state enthalpy or single dry bulb changeover control
  • Terminals included for switching between Occupied and Unoccupied operation
  • Terminals included for connecting optional S963B1128 Remote Potentiometer for remote minimum damper position control

more information & related documents

Series Description

The Honeywell W7220 JADE Economizer is used with CO2 sensors, and solid state C7400 Enthalpy Sensors or C7660 Dry Bulb Temperature Sensors. The unit proportions outdoor and return air dampers for control of free cooling in commercial HVAC equipment.

Kele Description

ELECTRONIC 20K TEMPERATURE SENSOR

Manufacturer

Honeywell

Related Documents

PDF - Honeywell W7220 Economizer DatasheetHoneywell W7220 Economizer Datasheet
PDF - Honeywell-Carrier W7220 Economizer InstallationHoneywell-Carrier W7220 Economizer Installation
