THM5421R1021

THM5421R1021/U | Resideo | Thermostats & Controllers

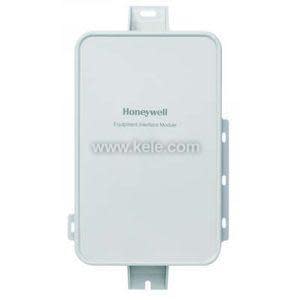

Prestige 2-Wire IAQ Equipment Interface Module

Brand:Resideo

MPN:THM5421R1021/U

SKU:THM5421R1021

List Price:

$337.00

Today's Price:

$175.24



Availability: Usually Ships in Less Than 7 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
installation instructions
catalog page

product specifications

Type

Programmable

product series specifications

    Suppy Voltage:
  • 24 VAC
    System Type:
  • 4 heat/2 cool heat pump and up to 3 heat/2 cool conventional
    Sensor Type:
    :
  • Temperature Onboard 20k‚Ѷ NTC
    :
  • Humidity Capacitive
    Communication:
  • RedLINK devices
    Baud Rate:
  • 900 MHz frequency range
    Analog Input:
  • EIM
    :
  • 2 Universal inputs, temperature or dry contact selectable (not available with single- piece thermostat)
    Output:
    :
  • EIM 7
    :
  • Standalone 6 (USB on some models)
    Contact Rating:
    :
  • EIM terminals W-O/B, Y, W3-Aux2, A-L/A Maximum Current 1.0A,
    :
  • EIM terminals G, U1, U2, U3 Maximum Current 0.5A
    :
  • EIM terminals W2-Aux1, Y2 Maximum Current 0.6A
    Temperature Sensor Accuracy:
  • ± 1.5° at 70‚Ñâ (0.75° at 21‚ÑÉ)
    Temperature Setting Range :
    :
  • Heating 40° to 90‚Ñâ (4.5° to 32‚ÑÉ)
    :
  • Cooling 50° to 99‚Ñâ (10° to 37‚ÑÉ)
    Operating Temperature:
    :
  • Thermostat 32° to 120‚Ñâ (0° to 48.9‚ÑÉ)
    :
  • EIM -40° to 165‚Ñâ (-40° to 73.8‚ÑÉ)
    Operating Humidity:
    :
  • Thermostat 5% to 90% condensing,
    :
  • EIM 5% to 95% non-condensing
    Dimensions:
    :
  • Thermostat
    :
  • Prestige IAQ 4-1/2‚Ä=W x 3-1/2‚Ä=H x 7/8‚Ä=D (11.5 x 8.9 x 2.2 cm)
    :
  • Prestige 2.0 6-13/16‚Ä=W x 3-7/8‚Ä=H x 1-7/16‚Ä=D (17.3 x 9.9 x 3.6 cm)
    :
  • EIM 9.34‚Ä=H X 4.83‚Ä=W X 1.6‚Ä=D (23.7 x 12.3 x 4.1 cm)
    Measurement Range:
  • Building material and content dependent
    Weight:
  • 2.0 lbs (maximum item)
    Approvals:
  • This device complies with Part 15 of the FCC Rules. (15.19, 15.21, 15.105)
    RoHS Statement:
  • Yes
    Warranty:
  • 5 years (excludes batteries)

product series features

  • 60% smaller than Prestige 2.0 and available in 4 colors
  • Delta T Alerts and Diagnostics inform customers when their system is not operating as expected
  • Residential or light commercial use
  • User Interaction Log provides a searchable history of setting changes
  • Assignable outputs for indoor air quality and staging control
  • Selectable staging options
  • Customizable service reminders
  • Up to 4H/2C heat pump or 3H/2C conventional systems

more information & related documents

Series Description

The Prestige High Definition (HD) Color Touchscreen Thermostat provides control of 24 VAC of heating and cooling systems. RedLINK enabled to work with compatible wireless accessories. These newly updated thermostats come in a variety of colors and can be accessed via the internet or through the mobile app available from Honeywell. The new Prestige is on the leading edge of design and remote access when it comes to thermostats for both residential and light commercial applications. Check out the entire line for one that fits your application.

Kele Description

INTERFACE MODULE FOR PRESTIGE/VISPRO8000

Manufacturer

Resideo

Related Documents

PDF - Prestige Installation Guide-2016Prestige Installation Guide-2016
PDF - Prestige User Manual-2016Prestige User Manual-2016
