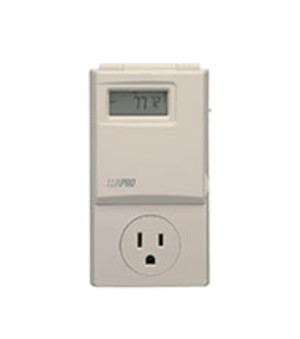

PSP300 | Johnson Controls | Thermostats & Controllers

Dimensions: 3.0" (76mm) wide x 5.25" (133mm) tall x 2.75" (70mm) deep; Unit Total / 1.80" (48mm) depth - when plugged in

Electrical Ratings: Unit is directly powered by the 120V outlet. (2) 1.5V G13 alkaline button cell batteries (included) are for maintaining the clock only

Temperature Control Range: Temperature control 45° F to 90° F (7° to 32° C); Accuracy +- 1° over a range of 45° F to 90° F

Environmental Limits

Moisture and Dust meets IP20; Operating Humidity 20% to 90% (non-condensing)

Operating temperature: 14°F to 122°F (-10°C to 50°C)

Storage temperature: -4°F to 140°F (-20°C to 60°C)

Electrical Immunity meets relevant EMI/EMC specifications

Compatible With: All mechanically controlled 120Volt, 15 Amp, 60 Hz, window air conditioning units and portable space heaters; also compatible with electronically controlled 120Volt, 15 Amp, 60 Hz, window air conditioning units that have an automatic restart of cooling after power resumption

NOTE Electronically controlled units can usually be identified by their digital readout. To learn whether a particular model offers automatic restart of cooling or heating after power resumption, refer to their manual or manufacturer.

Not Compatible With: It cannot be used with electronically controlled space heaters or window air conditioning units that do not have an automatic restart of cooling after power resumption**. In addition, it cannot be used with conventional 24 Volt heating/cooling systems, hydronic systems, or heat pumps.

NOTE Electronically controlled units can usually be identified by their digital readout. To learn whether a particular model offers automatic restart of cooling or heating after power resumption, refer to their manual or manufacturer.
