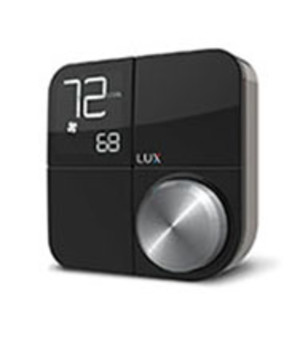

* product series image displayed

PEKN-S-B1-B04 | Johnson Controls | Thermostats & Controllers

T-STAT/KONO PRO EDITION,2HEAT/1COOL,VOICE ASSISTANT COMPATIBLE,WIFI CONNECTED,GEOFENCING,SNAP COVERS

Brand:Johnson Controls

MPN:PEKN-S-B1-B04

SKU:PEKN-S-B1-B04

List Price:

$-.--

Today's Price:

$-.--

product specifications

Controls Outputs

2H/1C

Type

Programmable

Display

Backlit LED

Set Point Range

32 to 99 °F

Supply Voltage (Nominal)

24 VAC

product series specifications

Dimensions: Height 4.5" (114.3 mm), Width 4.5" (114.3 mm), Depth 1.0"(25.4 mm)

Heat/Cool Terminals: Heat 2 total (W1, W2/O/B), Cool 1 total (Y1)

Electrical Ratings: Voltage Range 20-30V AC; Max Avg. Current Draw 120mA at 24V AC; Output Rating 1.5A resistive load per terminal, 4.2A resistive load combined load

Temperature Control Range: Control Range 50°F to 90°F (10C to 32°C); Display Range 32°F to 99°F (0°C to 37°C)

Environmental Limits: Operating Limits 14°F to 122°F (-10°C to 50°C); Storage Limits -4°F to 140°F (-20°C to 60°C); Operating Humidity 20% to 80% non-condensing; Moisture and Dust Up to IP20

WiFi Specifications: 2.4GHz 802.11 b/g/n; SHA256RSA data encryption; Network commissioning through iOS/Android app; Program and system settings stored on the device for set up and function with or without WiFi

Compatible With: Universal compatibility with forced air, gas, oil and electric furnaces up to 2h/1c and heat pump systems with or without aux/emergency heat. Power with C-wire or LUX Power Bridge(included)

Not Compatible With: 120V/240V line voltage systems, 2-wire heat

Packaging: Master Carton 4 Units; UPC 0 21079 17022 7

Warranty: 5 years

product series features

Smart Scheduling: Utility cost estimated
Smart tips: For savings and seasonality tips
IAQ Fan: works with LUX airSMART IAQ
Utility: Demand/response capable
Reporting: Energy and run time usage
Apps: iOS and Android
Color: Midnight Black cover
Energy Star®
Trim plate included

more information & related documents

Series Description

The LUX KONO Series is a geo-fencing, smart scheduling Wi-Fi-programmable thermostat for conventional forced air, gas, oil, and electric systems as well as heat pump systems. The PEKN-S-B1-B04 thermostat works with conventional 2H/1C HVAC systems and heat pump systems with 2H/1C with or without auxiliary/emergency heat. These come in a  black version with optional decorative covers (optional sold separately) and provide 7-day programmable options. Power options include standard 24V with a common wire or the LPB-WH-005 power bridge (included). The KONO thermostat is Energy Star certified and works with Amazon Alexa, Apple HomeKit, and Google Assistant.

Kele Description

T-STAT/KONO PRO EDITION,2HEAT/1COOL,VOICE ASSISTAN

Manufacturer

Johnson Controls
