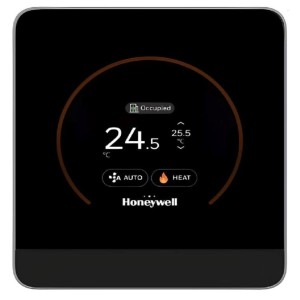

TR100-THC-G | Honeywell | Thermostats & Controllers

WALL MODULE WITH TEMPERATURE,HUMIDITY, AND CO2 SENSOR

Brand:Honeywell

MPN:TR100-THC-G

SKU:TR100-THC-G

This part requires a license. Log in to verify your license or submit a form to request a license.

product specifications

Controls Outputs

SYLK,BACnet MS/TP,Modbus

Communication Protocol

BACnet MS/TP,Modbus

Type

Wall Module

Display

LCD

Supply Voltage (Nominal)

24 VAC

product series specifications

Rated Voltage: 24 VAC 50/60 Hz

Display Type: 16 BPPTFT display with CTP

Resolutions: 320 x 240 pixel

Active Display Area: 2.4 in. Diagonally

Backlight: LCD (Dimmable)

LED Color Ring: Blue (cooling); Orange (heating)

Wire Gauge: 14-26 AWG (1.62 mm)

Wire Type: Cu

Ambient Operating Temperature: 32 to 122°F (0 to 50°C)

Ambient Operating Humidity: 10 to 90 % relative humidity (noncondensing)

Storage Temperature: -40 to 150°F (-40 to 65.5°C)

Protection Class: IP20

product series features

Built-in guided setup minimizes need for configuration training or user manuals
Automatically identifies and emulates many prior Honeywell wall modules
Easy to use due to sleek swipe-able touchscreens plus the option for a colorful status ring
Options to track and display temperature, humidity, CO2
Configure multiple user types and privileges

more information & related documents

Series Description

The Honeywell TR100 Wall Module is an advanced, highly configurable device providing building automation connectivity well-suited for Commercial building applications. TR100 can replace existing Honeywell wall modules using the existing tools familiar to installers. The Honeywell TR100 wall modules utilize Sylk™ communication, which is polarity insensitive and uses two wires. This device also supports BACnet™ MS/TP and Modbus™ RTU communications via RS-485 bus, which is prevalent in HVAC building control systems.<br>

Kele Description

WALL MODULE WITH TEMPERATURE,HUMIDITY, AND CO2 SENSOR

Manufacturer

Honeywell
