HVC20A1000 | Honeywell | Thermostats & Controllers
WIRELESS VENT AND FILTER BOOST REMOTE
Manufacturer:Honeywell
MPN:HVC20A1000
SKU:HVC20A1000
List Price:
142.00
Today's Price:
79.52
add to cart
product family specifications
Suppy Voltage
24 VAC
System Type
4 heat/2 cool heat pump and up to 3 heat/2 cool conventional
Sensor Type
Temperature Onboard 20kΩ NTC
Humidity Capacitive
Communication
RedLINK devices
Baud Rate
900 MHz frequency range
Analog Input
EIM
2 Universal inputs, temperature or dry contact selectable (not available with single- piece thermostat)
Output
EIM 7
Standalone 6 (USB on some models)
Contact Rating
EIM terminals W-O/B, Y, W3-Aux2, A-L/A Maximum Current 1.0A,
EIM terminals G, U1, U2, U3 Maximum Current 0.5A
EIM terminals W2-Aux1, Y2 Maximum Current 0.6A
Temperature Sensor Accuracy
± 1.5° at 70℉ (0.75° at 21℃)
Temperature Setting Range
Heating 40° to 90℉ (4.5° to 32℃)
Cooling 50° to 99℉ (10° to 37℃)
Operating Temperature
Thermostat 32° to 120℉ (0° to 48.9℃)
EIM -40° to 165℉ (-40° to 73.8℃)
Operating Humidity
Thermostat 5% to 90% condensing,
EIM 5% to 95% non-condensing
Dimensions
Thermostat
Prestige IAQ 4-1/2″W x 3-1/2″H x 7/8″D (11.5 x 8.9 x 2.2 cm)
Prestige 2.0 6-13/16″W x 3-7/8″H x 1-7/16″D (17.3 x 9.9 x 3.6 cm)
EIM 9.34″H X 4.83″W X 1.6″D (23.7 x 12.3 x 4.1 cm)
Measurement Range
Building material and content dependent
Weight
2.0 lbs (maximum item)
Approvals
This device complies with Part 15 of the FCC Rules. (15.19, 15.21, 15.105)
RoHS Statement
Yes
Warranty
5 years (excludes batteries)
product family features
- 60% smaller than Prestige 2.0 and available in 4 colors
- Delta T Alerts and Diagnostics inform customers when their system is not operating as expected
- Residential or light commercial use
- User Interaction Log provides a searchable history of setting changes
- Assignable outputs for indoor air quality and staging control
- Selectable staging options
- Customizable service reminders
- Up to 4H/2C heat pump or 3H/2C conventional systems
more information & related documents
Family Description

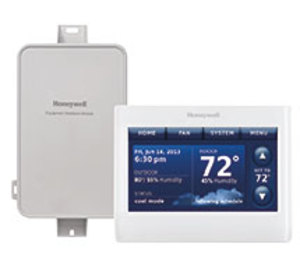

The Prestige High Definition (HD) Color Touchscreen Thermostat provides control of 24 VAC of heating and cooling systems. RedLINK™ enabled to work with compatible wireless accessories. These newly updated thermostats come in a variety of colors and can be accessed via the internet or through the mobile app available from Honeywell. The new Prestige is on the leading edge of design and remote access when it comes to thermostats for both residential and light commercial applications. Check out the entire line for one that fits your application.
Kele Description
WIRELESS VENT AND FILTER BOOST REMOTE
Manufacturer
Honeywell
