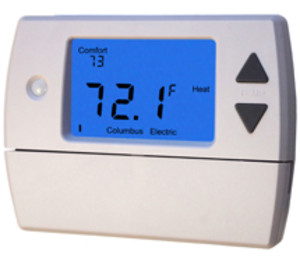

* product series image displayed

SDHW1001 | Columbus Electric | Thermostats & Controllers

TSTAT/SETBACK ON DEMAND/HARDWIRED

Brand:Columbus Electric

MPN:SDHW1001

SKU:SDHW1001

List Price:

$-.--

Today's Price:

$-.--

catalog page

product specifications

Type

Programmable

Display

LCD Backlit

Set Point Range

50 to 90 °F

Supply Voltage (Nominal)

24 VAC

product series specifications

Supply Voltage: 20-30 VAC

Amp Load per Contact: .0A

Batteries: 3AA (included), required

Battery Life: 2+ years

Low Battery Indicator: 6+ weeks

Keypad Lock: Locks all settings

System Compatibility: Single transformer, 27 types

Protection Delay:

Compressor: 5 minutes

Other Systems: 2 minutes

Minimum Run Time: 2 minutes

Case Size: 5.5"W x 4.5"H x 1.5"D (13.9 x 11.4 x 3.8 cm)

Remote Sensor: Motion & temp. optional

Temperature Display: °C or °F

Computed Recovery: 10 min. per degree

Motion Sensor Range: 16' max

Display: 3"W x 2"H (7.6 x 5.1 cm)

Temperature Resolution: 0.1°F, 0.1°C

Temperature Range:

Comfort: 50° to 90°F (10° to 32°C)

Economy: 38° to 102°F (2° to 40°C)

Economy Offset: 0° to 12°F, 0° to 8°C

Differential: 0.6°F

Deadband: 2F (default) Adj 1°-5°F

System Switch: Push button

Fan Switch: Push button

Comfort Periods: 10, 30, 60, 90, or 120 min.

Activity Settings:1 , 3, 5 within 10 min.

Comfort/Economy: Motion or push button

Motion Sensor Control: On/Off switch

Economy Offset: Set via slide control

Motion Beam Angle: 94°

product series features

Auto Comfort feature learns your schedule
Computed recovery
Seven day automatic setback
No programming
Set comfort temperatures and setback only
Works with 27 types of low voltage systems
Auto Changeover with adjustable deadband
Comfort settings adjustable from 50Â° to 90 degrees F (10Â° to 32 degrees C)
Economy Offset adjustable from 0Â° to 12 degrees F
Display in degrees F or degrees C
Battery or AC powered. Battery backup
Remote motion and temperature inputs
Locking keypad
Adjustable comfort periods
Short cycle and compressor protection delays
Low battery indicator

more information & related documents

Series Description

The Columbus Electric model SDHW1001 setback on demand thermostat is a self learning 7 day setback thermostat designed specifically for commercial and industrial applications. Unlike most setback thermostats this thermostat doesn't require programming. With the use of a motion sensor, it learns your schedule, and changes automatically with schedule changes. Regardless of your schedule, it automatically returns to economy after you leave. The Auto Comfort feature recovers to the comfort mode before you arrive. The holiday feature automatically sets back the temperature to the economy setting on any day that no-one shows up. This one model will work on single and multistage equipment up to 4 stages of heat, 4 stages of cool, or any combination of heat and cool up to 4 stages. Also compatible with 2 stage heat, 1 stage cool heatpumps.

Kele Description

TSTAT/SETBACK ON DEMAND/HARDWIRED

Manufacturer

Columbus Electric
