78671052766 | White-Rodgers | Thermostats & Controllers

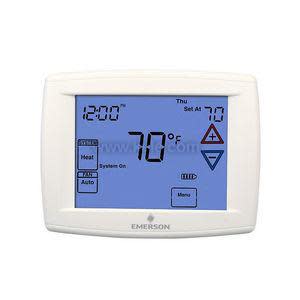

Thermostat/Single Stage/MS/HP/Un/Programmable/Non-Programmable/Blue 12" TouchScreen

Brand:White-Rodgers

MPN:78671052766

SKU:1F95-1277

List Price:

$577.00

Today's Price:

$300.04

product datasheet

installation instructions

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Controls Outputs

2H/2C

Type

Non-Programmable

Display

LCD Backlit

Set Point Range

45 to 99 °F

Supply Voltage (Nominal)

24 VAC

product series specifications

Supply Voltage: 24 VAC

Accuracy: ±1°

Contact Rating: 1.5 A

Temperature Range: 32° to 105°F (0° to 41°C)

Setpoint Range: 45° to 99°F (7° to 37°C)

Schedule Type: 4 (Morning, Day, Evening, Night), 2 (Day and Night), 2 (Day and Night)

Program Options: 7 days, 5+1+1

Bulb and Capillary: No

Control Type: Low voltage thermostat

Cycles Per Hour Cool: 2.5

Cycles Per Hour Heat: 5

Remote Sensor: Select models only

Sensor Type: Thermistor

System Type

1F95-1291, -1280, -1277 Single Stage, Multi-Stage, Heat Pump

1F97-1277 Single Stage, Heat Pump

Deadband: 1°

Differential: 1°

Display Type: LCD, 12" Touchscreen

Operating Temperature: 32° to 105°F (0° to 41°C)

Enclosure Rating: NEMA 1, ABS plastic

Dimensions: 4.56"H x 5.81"W x 1.81"D (11.58 x 14.76 x 4.60 cm)

Weight: 1.91 lb (0.87 Kg)

Warranty: 5 years

product series features

Large 12 inch touchscreen display
Quick one button programming
Configurable as manual heat/cool, auto changeover, heat only or cool only
Exclusive battery power monitor
Indoor remote sensing averaging option
Choice of programming options and time periods
Intuitive menu-driven set-up, programming and operation, with audio prompt to confirm entries
Choice of battery powered with optional power stealing assist or hardwired with battery backup

more information & related documents

Series Description

The White Rodgers 1F95 Series universal model thermostats are quickly configured for single stage, multi-stage or heat pump and heat pump dual fuel systems. They can also be selected as programmable or non-programmable. The White Rodgers 1F97 Series universal model thermostats is for single stage use only, but comes with all of the other features mentioned above. Variable keypad security prevents tampering and there is also temporary and vacation overrides for added convenience. These thermostats offer power stealing assist for maximum battery life, remote sensing, as well as the exclusive Cool Savings™ feature which adjusts the setpoint after 20 minutes to compensate for humidity loss thus providing the ultimate in comfort control and energy savings.

Kele Description

TSTAT/SS/MS/HP/UN/PROG/NON-PROG/BLUE 12IN TCHSCRN
