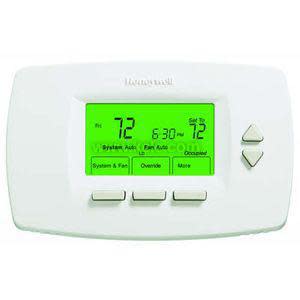

White digital thermostat with green display and buttons

TB7100A1000/U | Resideo | Thermostats & Controllers

MultiPRO 7000 multispeed and multipurpose programmable/non-programmable thermostat

Brand:Resideo

MPN:TB7100A1000/U

SKU:TB7100A1000

List Price:

$508.00

Today's Price:

$264.16

installation instructions

catalog page

product specifications

Type

Non-Programmable

Display

Digital Backlit

Set Point Range

40 to 90 °F,Cool: 54 to 100 °F

Supply Voltage (Nominal)

24 VAC

product series specifications

Supply Voltage: 20-30 VAC, 50/60 Hz

Battery: Optional, 2-AA (1 year life)

Accuracy: ±1°F (0.5°C), system dependent

Contact Ratings: 0.02-1.0A, 0.60A maximum current for fan terminals

Contact Type: SPST relays

Memory: 10 years

Remote Sensor: Indoor/Setback/Changeover

Control: Proportional plus Integral (PI)

Deadband: Adjustable, 2°/9°F, (1.5°/5°C)

Programmable: Optional setup, 7-day prog., with 2 Occupied/Un-Occupied per day

Setpoint/Setback: Adjustable with programmable limits

Heating : 40 to 90°F (10 to 32°C)

Cooling : 50 to 99°F (10 to 37°C)

Display: LCD, Backlit, Accuracy ±1°F (±0.5°C)

Changeover: Manual or Auto changeover selectable

Controls: Manual button selection

System : Heat-Off-Cool-Auto

Fan setting : Auto-On

Fan Speeds : Low, Medium, High

Dimensions: 3.75"H x 6.0"W x 1.375"D (9.5 x 15.2 x 3.5 cm)

Weight: 1.0 lb (0.45 Kg)

Warranty: 2 years

product series features

Programmable or non-programmable modes
Remote setback input for occupancy sensors or timeclocks
Real-time clock keeps time during power failures and automatically updates to daylight savings
Large, clear display with backlight
Menu-driven programming
Speedy same-schedule programming, no need to copy multiple days

more information & related documents

Series Description

The Honeywell TB7100A1000 MultiPRO Multispeed and Multipurpose Thermostat is an effortless, seven-day programmable or nonprogrammable thermostat that provides universal system compatibility, precise comfort control and is easy-to-program.

Kele Description

PROGRAM/NON-PROG T-STAT

Manufacturer

Resideo
