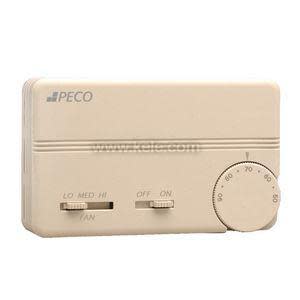

PECO Fan Coil Thermostat
Brand:Peco
MPN:68608
SKU:TB155-048
List Price:
$305.52
Today's Price:
$158.87
product specifications
Supply Voltage
24-277 VAC
Type
Non-Programmable
Set Point Range
50 to 90 °F
Display
Mechanical
Controls Outputs
On/Off
product series specifications
- :
- T155
- Supply Voltage:
- 24-277 VAC @ 0.6 VA
- Output Capacity:
- 10 VA @ 24 VAC
- :
- 20 VA @ 120-277 VAC
- Control Type :
- Two position
- Differential:
- 1°F (0.5°C)
- Deadband:
- 4°F (2.2°C) (TB155 only)
- :
- T167
- Supply Voltage:
- 24 VAC @ 0.6 VA
- Control Type:
- Proportional
- Proportional Band:
- 2°F (1°C)
- Control Output:
- 0-10 VDC, 1 kΩ min
- Deadband:
- :
- 0-10V actuator 0°F (possible H and C output ON)
- :
- :
- 2-10V actuator 0.8°F (0.44°C)
- :
- General
- Fan/System Switch Rating:
- 24 VA @ 24 VAC
- :
- 125 VA @ 120-277 VAC
- Setpoint:
- 50° to 90°F (10° to 32°C)
- Construction:
- Flame-retardant PVC
- Color:
- Cool gray
- Operating Temperature:
- 32° to 130°F (0° to 55°C)
- Weight:
- 0.28 lb (0.13 Kg)
- Approvals:
- UL File #E50023, CE
- Warranty:
- 5 years
product series features
- Electronic design performance
- Two-position and Proportional models
- Remote sensor capability
- Fan and system switching models
- degrees F scale standard
- degrees C or warmer/cooler dials available
- Setpoint stops available
more information & related documents
Series Description
The T155 Series Line and Low Voltage Two-Position Thermostat is a general purpose, electronic, two-position line-voltage and low-voltage thermostat. The T167 Series Proportional Thermostat is a 0 to 10 volt DC proportional heating/cooling low voltage thermostat. Both are designed for a variety of two- and four-pipe, heating and cooling HVAC applications and for Building Automation Systems, BAS. Both manual and automatic changeover models include a provision for a remote thermistor temperature sensor.
Kele Description
24-277V, 1H/1C 2-TRIAC, AUTO SWITCH OVER
Manufacturer
Peco
