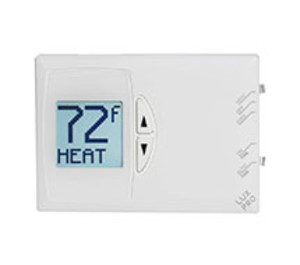

PSD111 | Johnson Controls | Thermostats & Controllers

T-STAT/1HEAT/1COOL,GAS,OIL,ELEC,MV,HP,VERTICAL/HORIZONTAL,NEW LARGER DISPLAY

Brand:Johnson Controls

MPN:PSD111

SKU:PSD111

List Price:

$-.--

Today's Price:

$-.--

product specifications

Type

Non-Programmable

Display

LCD

Set Point Range

23 to 99 °F

Controls Outputs

1H/1C

product series specifications

Physical Dimensions (when mounted)

Width = 3.50" (90 mm); Height = 5.125" (131 mm); Depth = 1.125" (30 mm);

Option wall plate Part no. WP011, 4.5" (115 mm) X 5.5" (140 mm) X 0.125" (4 mm)

Carton Pack Quantity 10 pieces

UPC Code 0 21079 07010 7

product series features

Digital accuracy
Battery-powered only
Large illuminated display
Attractive slim design
Fahrenheit/Celsius switchable
Easy installation
Optional wall plate available
5-year warranty

more information & related documents

Series Description

The LUX PSD Series are digital non-programmable thermostats. The PSD010B is battery power and heat only manual thermostat with a large back-lit temperature only display that works with 24V/2-wire heat only systems, single-stage gas or oil systems with no fan, 2-wire heat hydronic systems, and millivolt systems. The PSD011B is vertical mount battery power only for 1C/1H gas, oil electric, single-stage heat pump, 2-wire heat only hydronic, or millivolt systems. The PSD111 is a vertical or horizontal mount, dual-powered (24V), and battery (2AA) thermostat compatible with 1C/1H gas, oil electric, single-stage heat pump, 2-wire heat only hydronic, or millivolt systems. The PSDH121 will also work with 2H/1C heat pump systems.

Kele Description

T-STAT/1HEAT/1COOL, GAS,OIL,ELEC,MV,HP, VERTICAL/HOR

Manufacturer

Johnson Controls
